| Catalog No. | Est. Ship Weight | Carton Dimensions |
|---|---|---|
| Stainless Steel | 2 lbs. | 10" x 6" x 4" |
BQ02 Series
Product Specifications
Construction
316 stainless steel housing with 12" rigid stem and 16" flex arm with clear weatherproof cover on flex arm
Voltage
12 Volt / 120 Volt
LED / Lamp
12 Volt: 7w MR16 Super Saver LED 36° (L48)
120 Volt: 7w PAR16 Super Saver LED 36° (L134)
120 Volt: 7w PAR16 Super Saver LED 36° (L134)
CCT
12 Volt: 3000K
120 Volt: 3000K
120 Volt: 3000K
Lumens
12 Volt: 550lm
120 Volt: 550lm
120 Volt: 550lm
Socket
12 Volt: GU5.3 Bi-Pin
120 Volt: Medium Base
120 Volt: Medium Base
Lifetime Rating
50,000 hours
Mounting
12 Volt / 120 Volt: FD (Deck Mount)
12 Volt / 120 Volt: TM (Top Deck Mount)
12 Volt: QC (Quick Connect)
12 Volt: FC5 (5" Clamp)
12 Volt / 120 Volt: TM (Top Deck Mount)
12 Volt: QC (Quick Connect)
12 Volt: FC5 (5" Clamp)
Finish
316 Stainless Steel: Unfinished
Optional premium polyester powder coat finished available
BKM (Black Magic)
DBZ (Dark Bronze)
Optional premium polyester powder coat finished available
BKM (Black Magic)
DBZ (Dark Bronze)
Selected: Dark Bronze (DBZ)
Downloads
Specifications
- BQ02 Specification Sheet
- Barbecue and Grill Lights Brochure
- 12v BQFD (Flex Deck) Installation Instructions
- 120v BQFD (Flex Deck) Installation Instructions
- 12v BQFC (Flex Clamp) Installation Instructions
- 120v BQFC (Flex Clamp) Installation Instructions
- 12v BQQC (Quick Connect) Installation Instructions

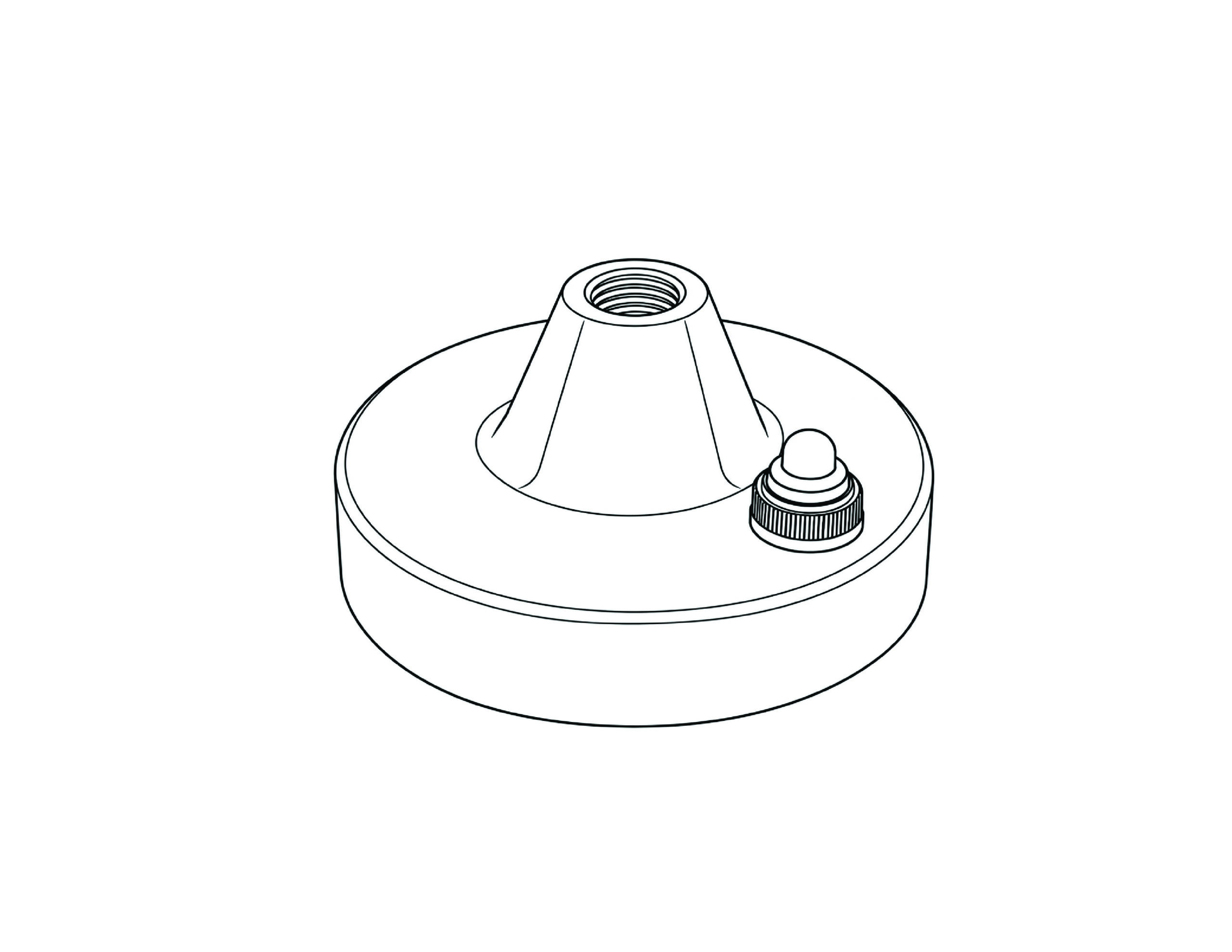

DM
Deck Mount

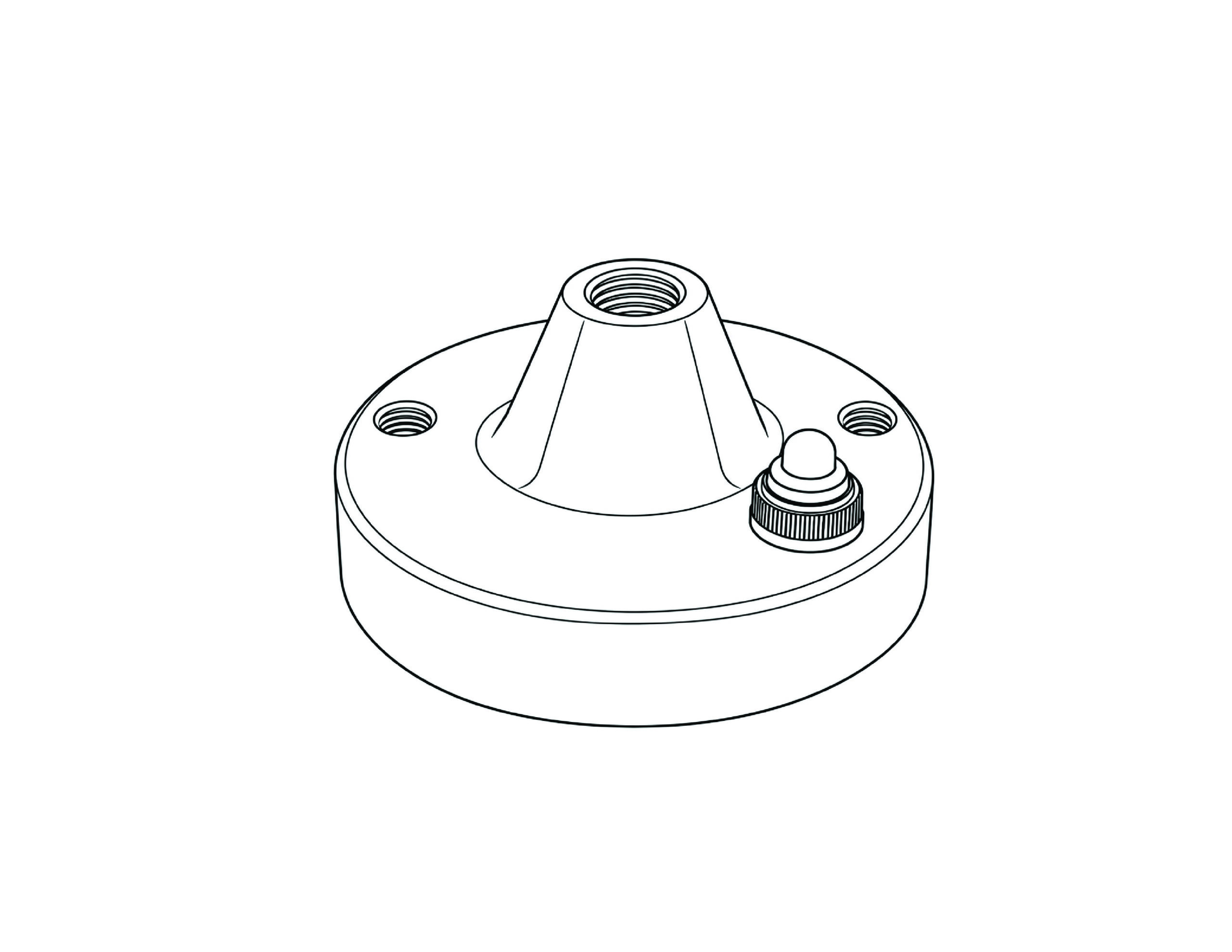

TDM
Top Deck Mount

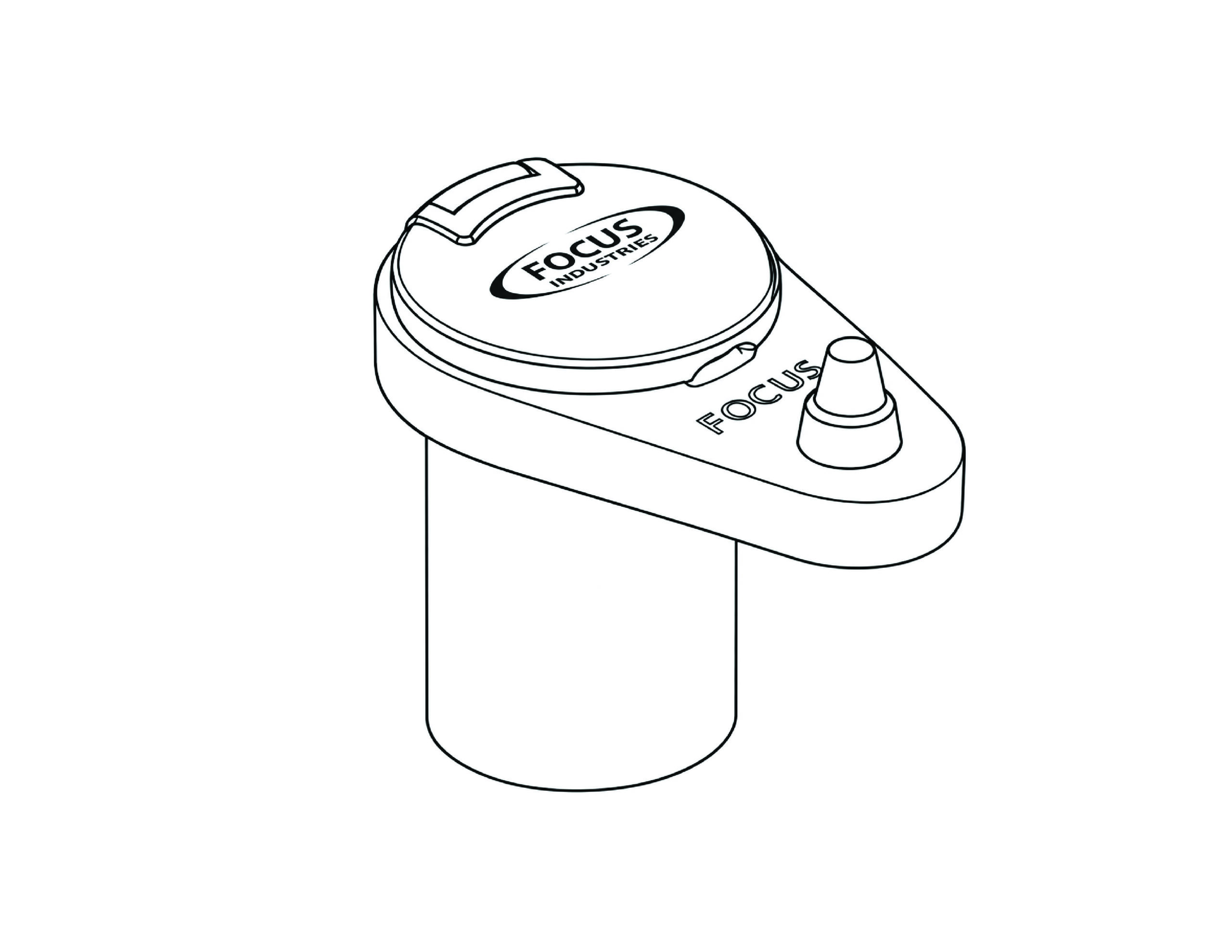

QC
Quick Connect 12 Volt
FC5
5 Inch Clamp 12 Volt

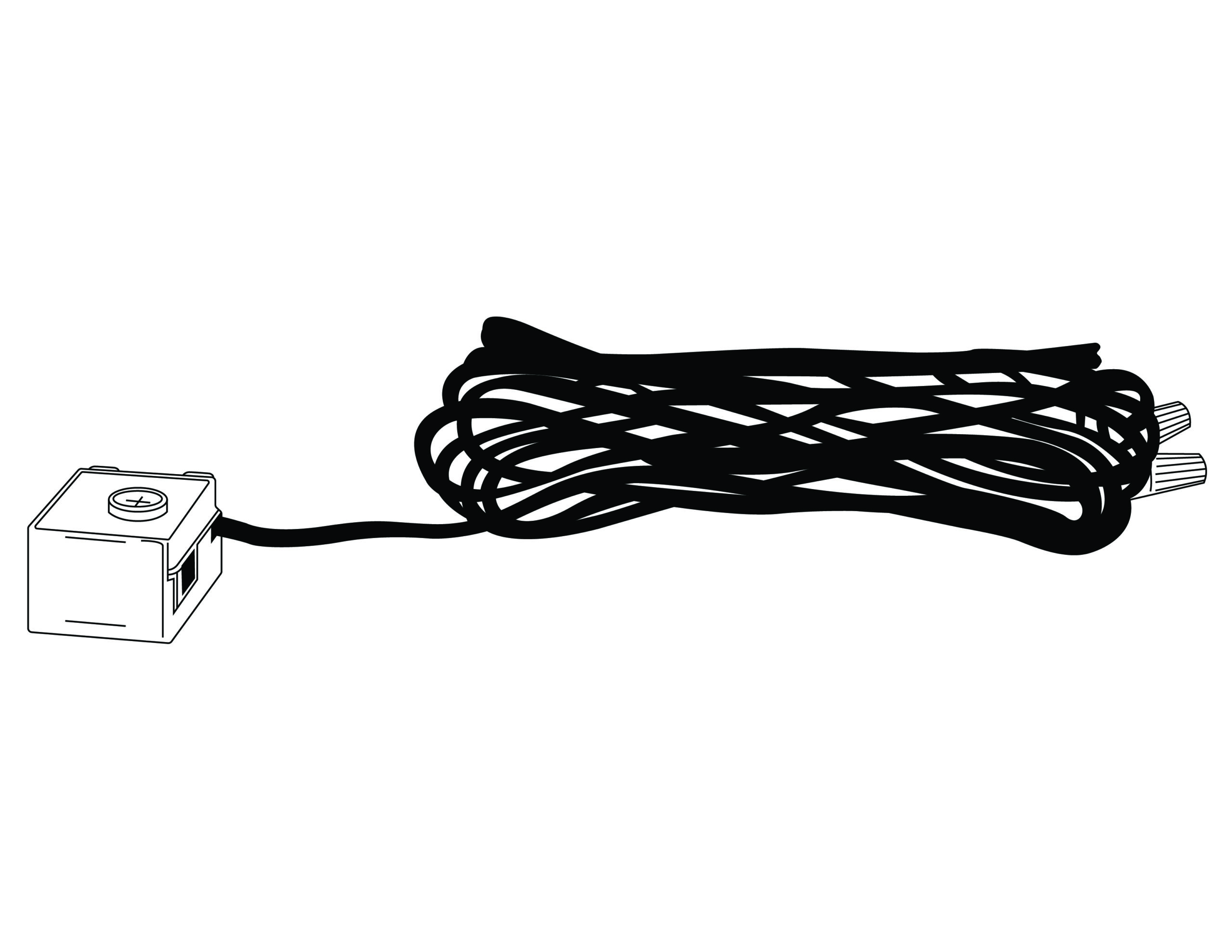

BQFA03
12V Power Supply Kit

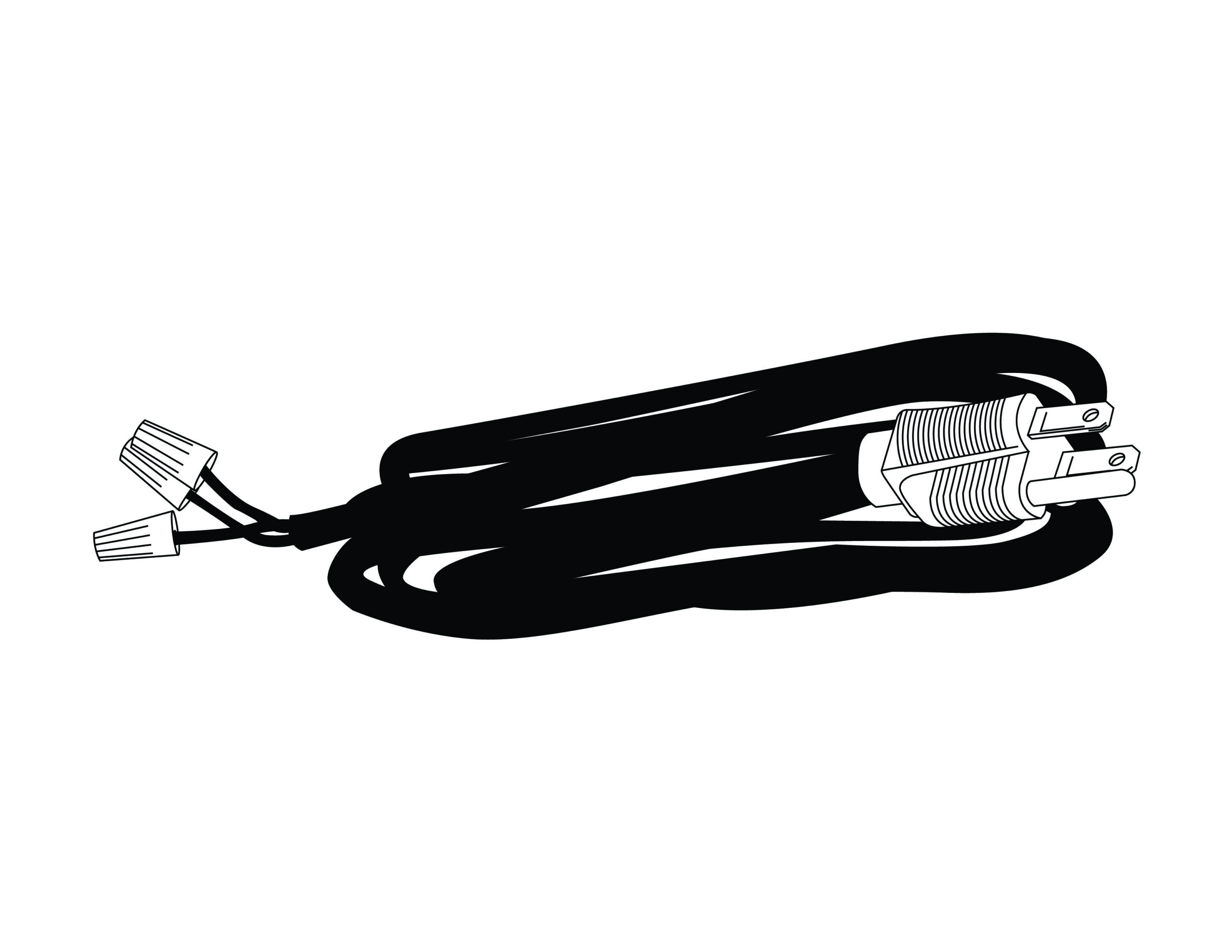

BQFA04
120V Power Supply Kit
Available Finishes
Select any finish below to view a larger preview. Finish availability may vary by fixture material. Premium powder coat and acid treatment finishes may carry additional charges.
STANDARD FINISHES
PREMIUM FINISHES
Configure Your BQ02
Build your fixture and catalog number.
Fixture
BQ
Barbecue Light
02
316 Stainless Steel Angled Bullet BBQ Light
Light Source
L48
7W MR16 LED
Watt
Socket
Kelvin
Lumens
Mounting Device
Select the mounting device to include its code in the catalog number.
Power Kit
Optional accessory. Power Kit selection does not change the fixture catalog number.
Finish
Premium powder coat finishes may carry additional charges.
Selected Finish
Click swatch to enlarge
Unfinished 316 Stainless Steel
SS
Configured Catalog Number
BQFD02L48SS
•
•
