AL2P Commercial Area Light

CONSTRUCTION:
Aluminum or brass cast hats
Matching aluminum or brass round extrusion post

VOLTAGE:
12 Volt / 120 Volt

LED:
3w MR16 LED GU10 36° Flood (L108)
5w MR16 LED GU10 36° Flood (L116)
7w MR16 LED GU10 36° Flood (L126)
Other 120V MR16 options available, or no lamp (NL)

CCT:
2700K

LUMENS:
3W MR16: 270lm
5w MR16: 450lm
7w MR16: 550lm

SOCKET:
12 Volt: GU5.3 Bi-Pin
120 Volt: GU10

POST:
2in diameter x 15″ round extrusion

HAT OPTIONS:
Aluminum 6061, Brass C27200
AL01 / AL04 / AL05 / AL06 / AL06SM / AL12 / AL15 / AL17 / AL17SM

MOUNTING:
Standard: 3-Prong Steel Spike (FA033P)

FINISH:
Aluminum-Black Texture polyester powder coat.
Optional powder coat finishes available.

Brass-Unfinished.
Optional powder coat and acid treatments available.

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only



Catalog No. Description Lamp

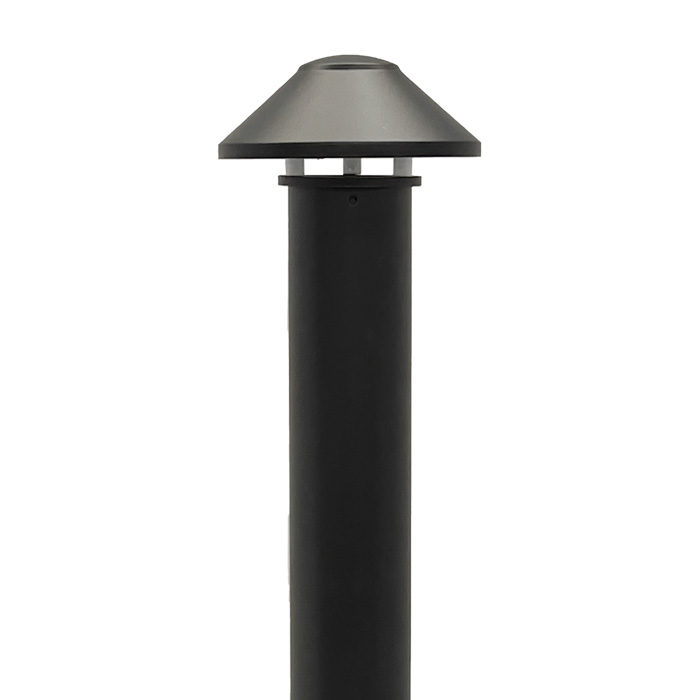

AL012PL24BLT/BRT Aluminum 5.50″ Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL012PL24BRS Brass 5.50″ Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood

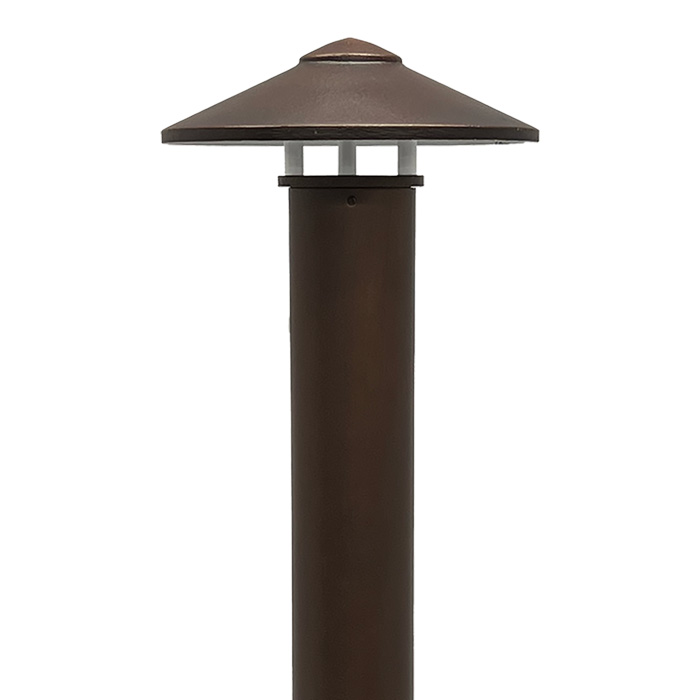

AL042PL24BLT/BRT Aluminum 7.50″ Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL042PL24BRS Brass 7.50″ Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood

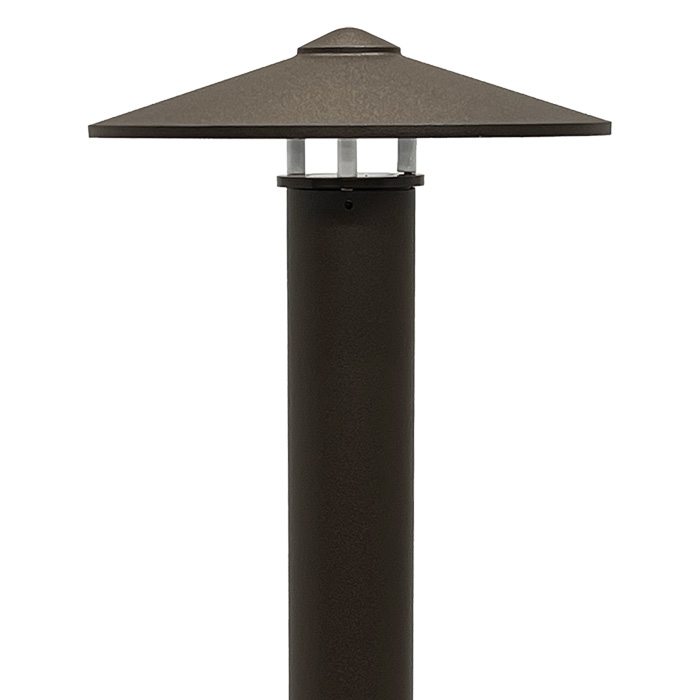

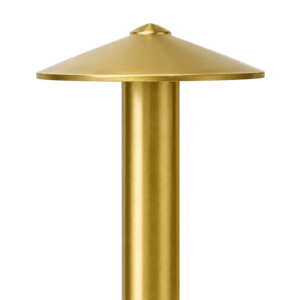

AL052PL24BLT/BRT Aluminum 10.00″  Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL052PL24BRS Brass 10.00″ Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood

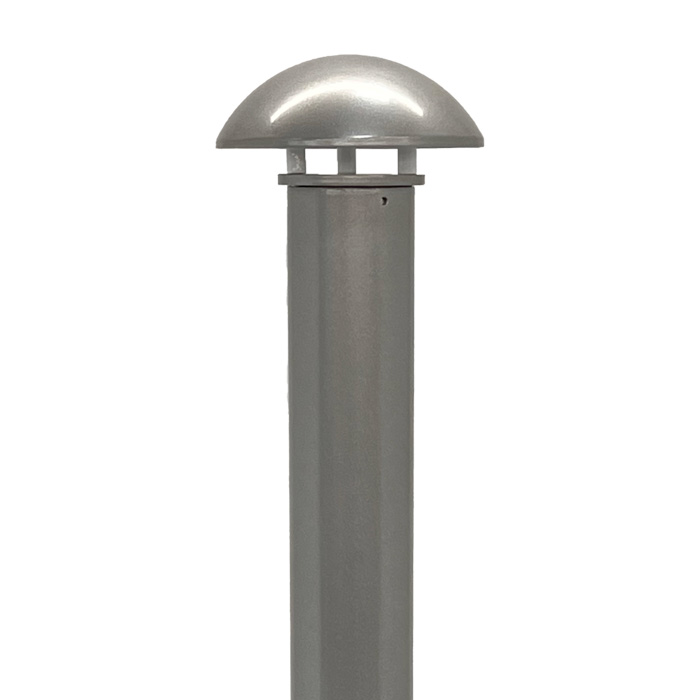

AL062PL24BLT/BRT Aluminum 5.50″ Mushroom Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood

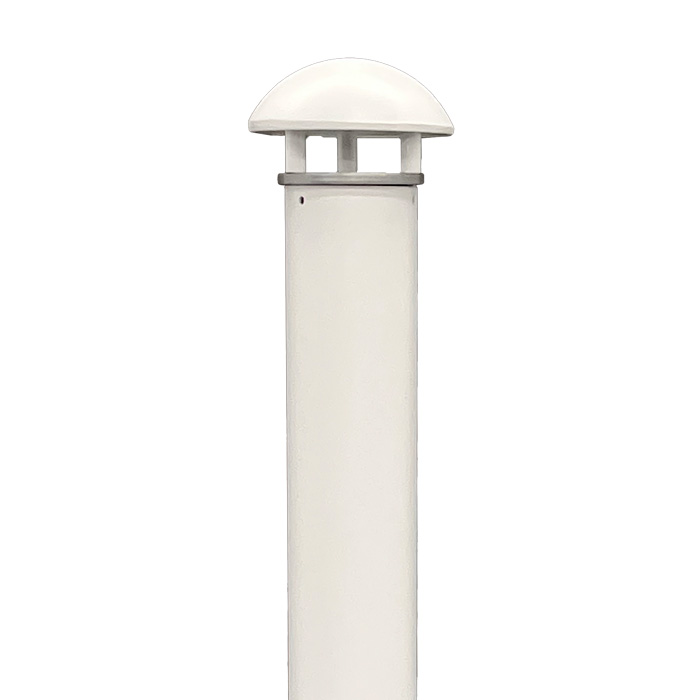

AL06SM2PL24BRS Brass 3.75″ Mushroom Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood

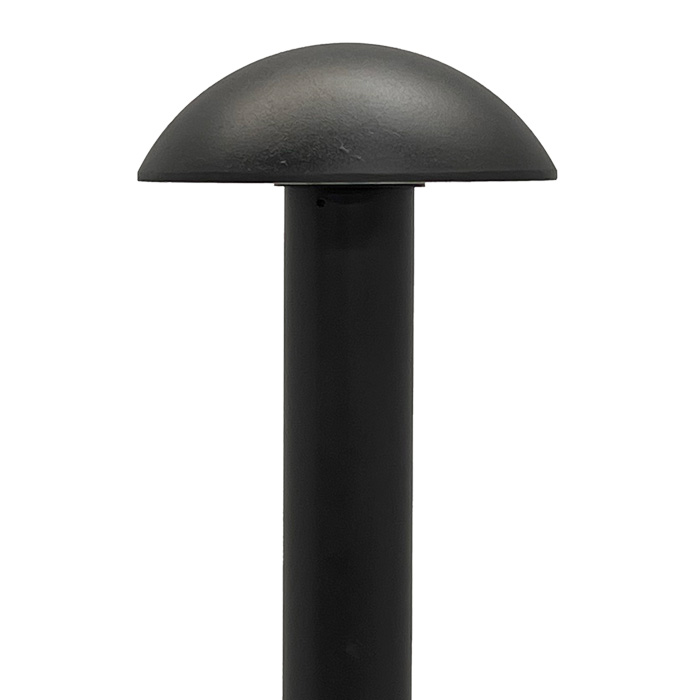

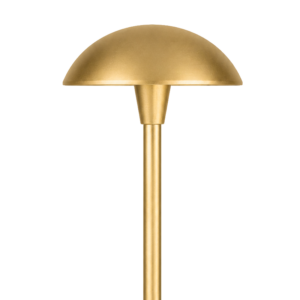

AL122PL24BLT/BRT Aluminum 8.00″ Mushroom Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL122PL24BRS Brass 8.00″ Mushroom Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood

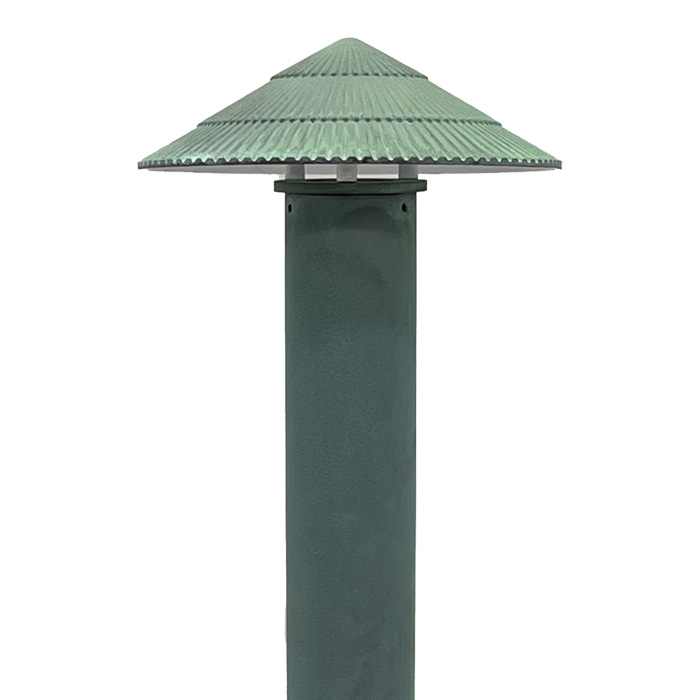

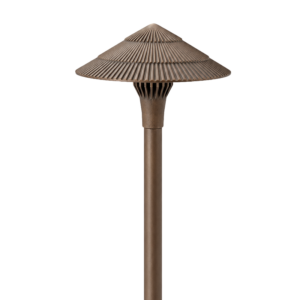

AL152PL24BLT/BRT Aluminum 8.00″ Tiki Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL152PL24BRS Brass 8.00″ Tiki Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL172PL24BLT/BRT Aluminum 8.00″ China Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL172PL24BRS Brass 8.00″ China Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
AL17SML12BLT/BRT Aluminum 5.50″ China Hat with 2″ Diameter Post 3w 12V MR16 LED 36° Flood
3w 12V MR16 LED 36° Flood
120V GU10 MR16 LEDs available

FA033P 3-Prong Stake (Standard Mounting) Other options available
