AL-05-CP

CONSTRUCTION:  Cast aluminum or cast brass China Hat; matching 3″ extruded aluminum or brass post

LENS:  Tempered flat glass

LIGHT SOURCE:  7w ARROW Super Saver MR16 LED or 15w LED module

LIFETIME RATING:  40,000 / 50,000 hours

12v INTERNAL DRIVER:  On board for the 15w LED module

120v INTERNAL DRIVER:  HW-12-60LED transformer

SOCKET MR16:  High temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires

SOCKET LED MODULE:  None – LED is hard wired inside fixture

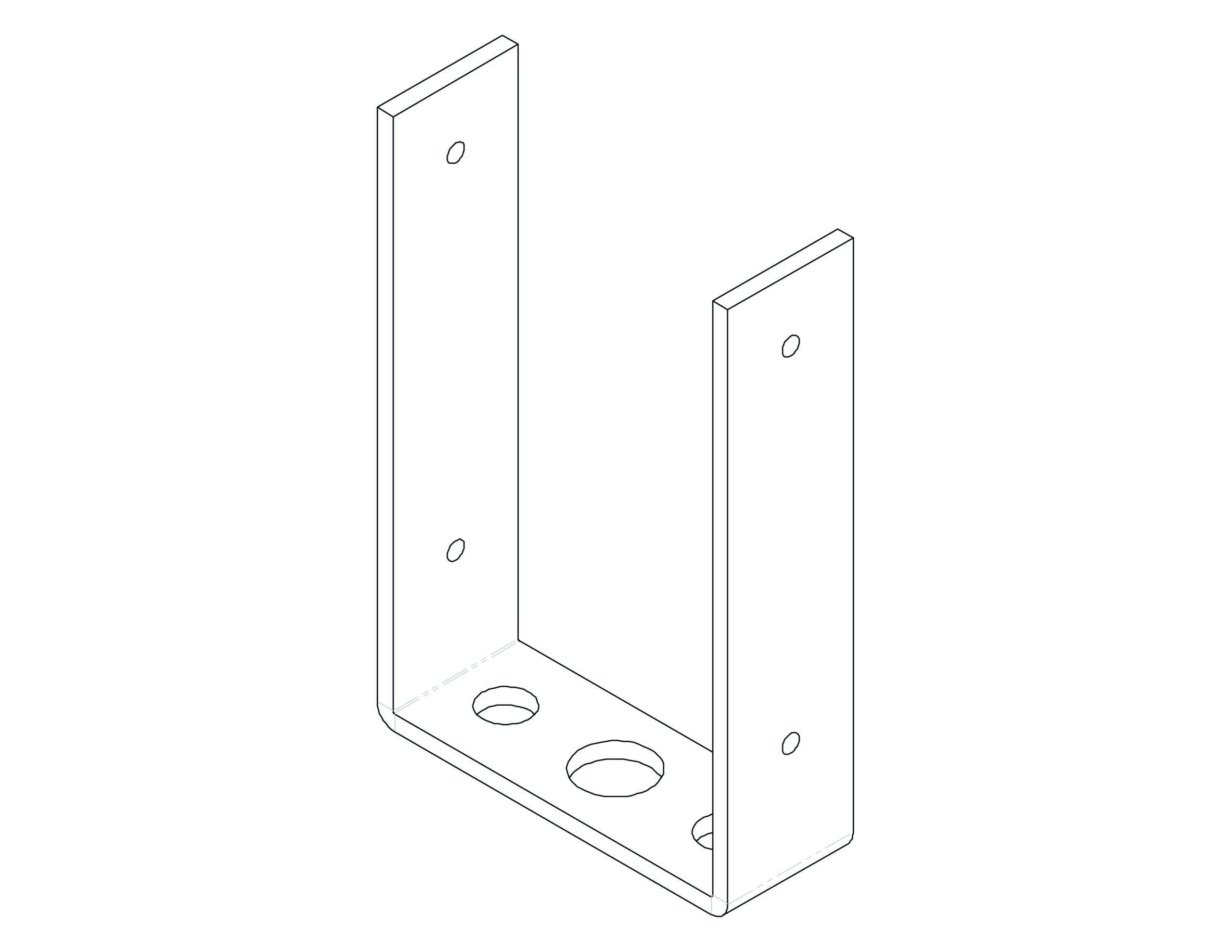

MOUNTING:  U-bracket with 4 mounting screws

FINISH:  Aluminum – Black texture polyester powder coat. Optional finishes available
Brass – Unfinished brass. Optional finishes available.

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only

DOWNLOADS

SKU: AL-05-CP Category: Tags: ,
CATALOG NO. DESCRIPTION LAMP
AL-05-CP24MR120BLT Aluminum China 10″ Hat on 24″, 3″Ø Post, Black Texture Finish 7W MR16 LED
AL-05-CP36MR120BLT Aluminum China 10″ Hat on 36″, 3″Ø Post, Black Texture Finish 7W MR16 LED
AL-05-CP24LM120BLT Aluminum China 10″ Hat on 24″, 3″Ø Post, Black Texture Finish 15W LED MODULE
AL-05-CP36LM120BLT Aluminum China 10″ Hat on 36″, 3″Ø Post, Black Texture Finish 15W LED MODULE
AL-05-CP24MR120BRS Brass China 10″ Hat on 24″, 3″Ø Brass Post 7W MR16 LED
AL-05-CP36MR120BRS Brass China 10″ Hat on 36″, 3″Ø Brass Post 7W MR16 LED
AL-05-CP24LM120BRS Brass China 10″ Hat on 24″, 3″Ø Brass Post 15W LED MODULE
AL-05-CP36LM120BRS Brass China 10″ Hat on 36″, 3″Ø Brass Post 15W LED MODULE
For 12v, remove 120 from part #
Stake Mount add “S” after height
