| Catalog No. | Description | Lamp |
|---|---|---|
| AL-17-BLT | Cast Aluminum 8″ China Hat | 18w S8 #1141 |
| AL-17-BRS | Cast Brass 8″ China Hat | 18w S8 #1141 |
| AL-17-SM-BLT | Cast Aluminum 5.5″ China Hat | 18w S8 #1141 |
| AL-17-SM-BRS | Cast Brass 5.5″ China Hat | 18w S8 #1141 |
| AL-17-SM2-BLT | Cast Aluminum 5.5″ China Hat | 18w S8 #1141 |
| AL-17-SM2-BRS | Cast Brass 5.5″ China Hat | 18w S8 #1141 |

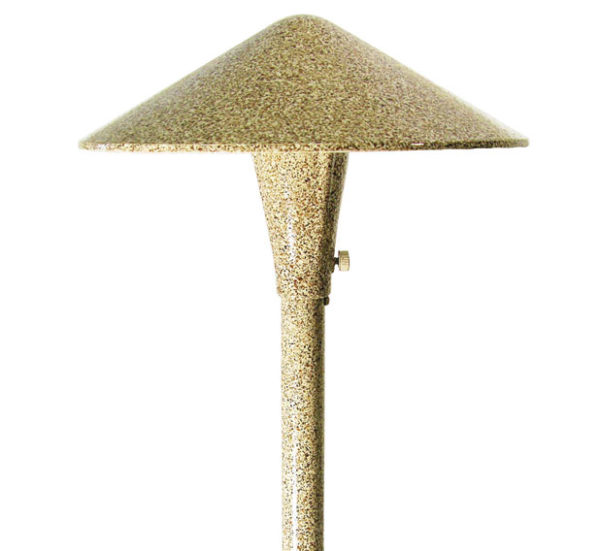

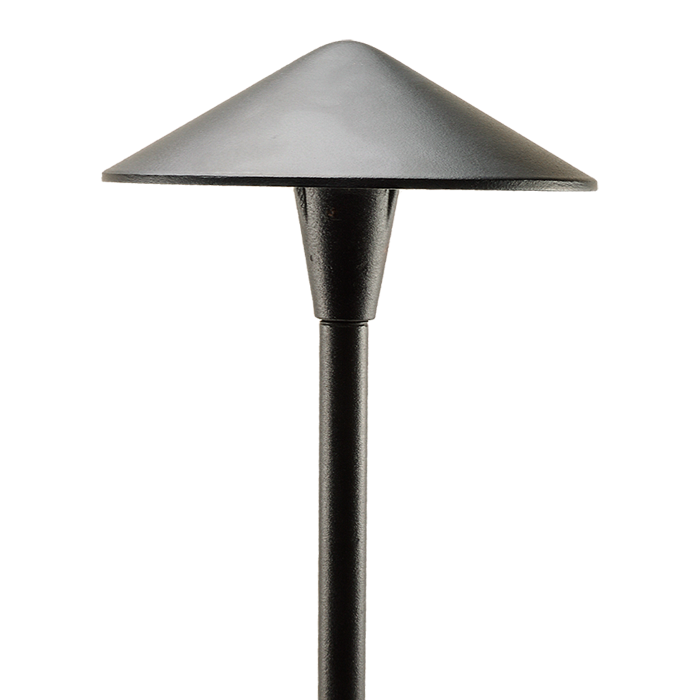

AL-17
CONSTRUCTION: Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion
LAMP OPTIONS: LED & legacy lamp options see specification sheet
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
MOUNTING: FA-03 black 9″ ABS stake, tapped 1/2″ NPS
FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
Brass & Copper Only
