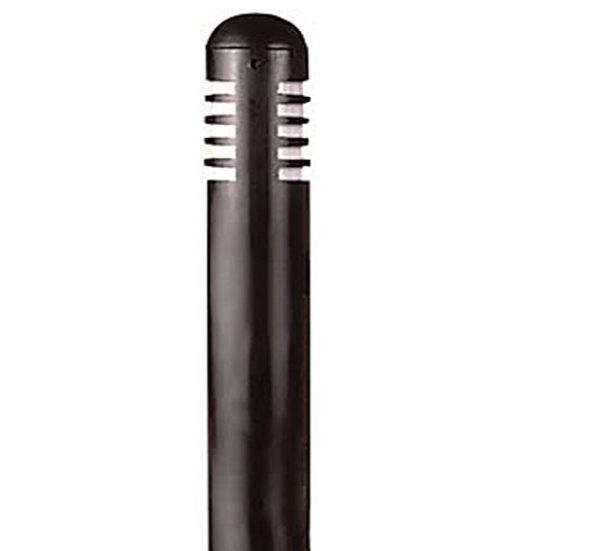

AL08LG

CONSTRUCTION:  4.5″ Diameter Aluminum, Brass, or Black ABS Bollard with Aluminum or Brass Top (ABS has Black Aluminum Top)

LENS:  White High-Impact Acrylic

MOUNTING:  Ground Mount – 4 RP-42 Black ABS Stabilizing Fins
Deck Mount – U-bracket with 4 Mounting Screws (Add -DM to part number)

FINISH:  Aluminum – Black texture polyester powder coat. Optional finishes available.
Brass – Unfinished brass. Optional finishes available.
ABS – Black or Rubbed Verde.

SINGLE TUBE COMPACT FLUORESCENT

LAMP:  5, 7, 9 or 13 watt CFL T4 single tube, 4100K, 10,000 hour (26w -2x 13w max)

BALLAST:  Internal Type 1 outdoor magnetic clamped core ballast. 120v primary amp draw of 0.165, not including lamp wattage. 5w and 7w CFL operate off same ballast and are interchangeable. 240v and 277v options available. Consult factory for details.

SOCKET:  G23 2-pin

TRIPLE TUBE COMPACT FLUORESCENT

LAMP:  26, 32 or 42 watt Triple Tube CFL, 4100K, 10,000 hour (42w max)

BALLAST:  120-277volts 50/60Hz Type 1 outdoor multi-voltage high power factor electronic program star ballast, primary draw .55A/120v thru .22A/277v

SOCKET:  GX24Q-3 4pin

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only

DOWNLOADS

SKU: AL-08-LG Category: Tags: , , , , , , , , , ,
Catalog No. Description Lamp
AL08LGFL5 Black ABS 4.50″ Bollard 5w 4100K CFL
AL08LGALUMFL5BLT Black aluminum 4.50″ Bollard 5w 4100K CFL
AL08LGFL5BRS Brass 4.5″ Bollard 5w 4100K CFL
AL08LGFL7 Black ABS 4.50″ Bollard 7w 4100K CFL
AL08LGALUMFL7BLT Black aluminum 4.50″ Bollard 7w 4100K CFL
AL08LGFL7BRS Brass 4.5″ Bollard 7w 4100K CFL
AL08LGFL9 Black ABS 4.50″ Bollard 9w 4100K CFL
AL08LGALUMFL9BLT Black aluminum 4.50″ Bollard 9w 4100K CFL
AL08LGFL9BRS Brass 4.5″ Bollard 9w 4100K CFL
AL08LGFL13 Black ABS 4.50″ Bollard 13w 4100K CFL
AL08LGALUMFL13BLT Black aluminum 4.50″ Bollard 13w 4100K CFL
AL08LGFL13BRS Brass 4.5″ Bollard 13w 4100K CFL
AL08LGFL26 Black ABS 4.50″ Bollard 2x 13w 4100K CFL
AL08LGALUMFL26BLT Black aluminum 4.50″ Bollard 2x 13w 4100K CFL
AL08LGFL26BRS Brass 4.5″ Bollard 2x 13w 4100K CFL
AL08LGFL263T Black ABS 4.50″ Bollard 26w 3T 4100K CFL
AL08LGALUMFL263TBLT Black aluminum 4.50″ Bollard 26w 3T 4100K CFL
AL08LGFL263TBRS Brass 4.5″ Bollard 26w 3T 4100K CFL
AL08LGFL323T Black ABS 4.50″ Bollard 32w 3T 4100K CFL
AL08LGALUMFL323TBLT Black aluminum 4.50″ Bollard 32w 3T 4100K CFL
AL08LGFL323TBRS Brass 4.5″ Bollard 32w 3T 4100K CFL
AL08LGFL423T Black ABS 4.50″ Bollard 42w 3T 4100K CFL
AL08LGALUMFL423TBLT Black aluminum 4.50″ Bollard 42w 3T 4100K CFL
AL08LGFL423TBRS Brass 4.5″ Bollard 42w 3T 4100K CFL
