| CATALOG NO. | DESCRIPTION | LAMP | |
|---|---|---|---|
| AL-03-BLT | 2 Tier Aluminum 6″ Pagoda Hat | 18w S8 #1141 | |
| AL-03-10-BLT | 2 Tier Aluminum 10″ Pagoda Hat | 18w S8 #1141 | |
| AL-03-3T-BLT | 3 Tier Aluminum 6″ Pagoda Hat | 18w S8 #1141 | |
| AL-03-3T-10-BLT | 3 Tier Aluminum 10″ Pagoda Hat | 18w S8 #1141 | |
| AL-03-4T-BLT | 4 Tier Aluminum 6″ Pagoda Hat | 18w S8 #1141 | |
| AL-03-4T-10-BLT | 4 Tier Aluminum 10″ Pagoda Hat | 18w S8 #1141 |
AL-03

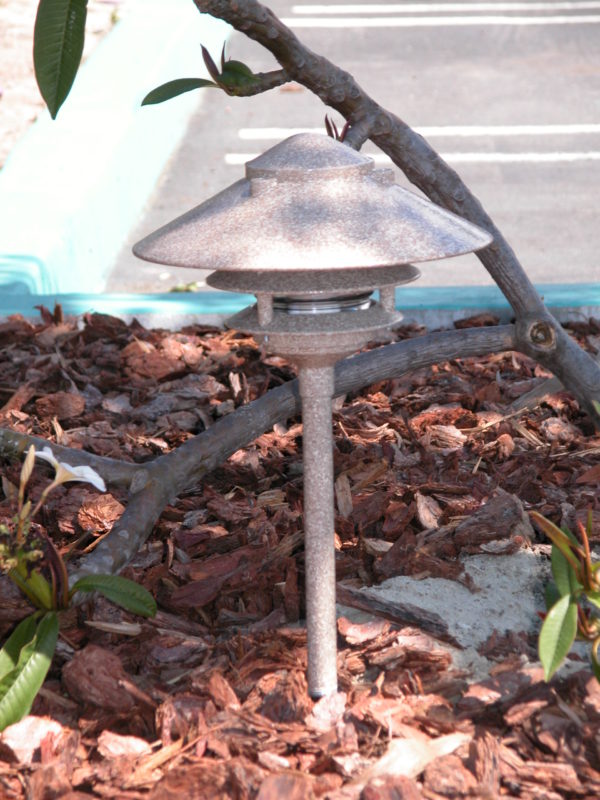

CONSTRUCTION: Cast aluminum Pagoda Hat with matching extruded aluminum stanchion. Two, Three or Four tier models available.
AL-03 LENS: 3.25″ tall clear prismatic polycarbonate
AL-03-3T LENS: 5″ tall clear tempered glass
AL-03-4T LENS: 7″ tall clear tempered glass
LAMP OPTIONS: LED & legacy lamp options see specification sheet
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
MOUNTING: FA-03 black 9″ ABS stake, tapped 1/2″ NPS
FINISH: Black texture polyester powder coat. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
