SLS-17

SLS-17 SERIES

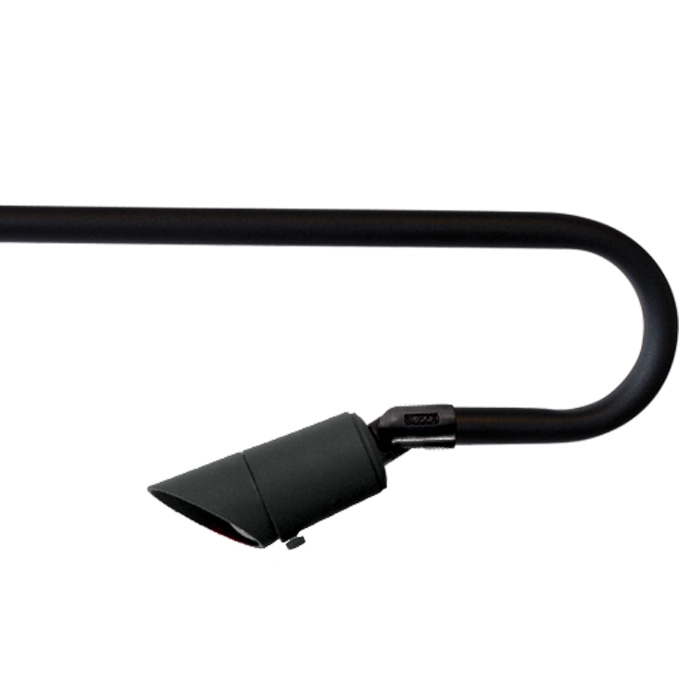

Small DL-17 Round Back single or double fixture head with 360° swivel mounts unobtrusively to any building facade. Multiple 12v light source options in both MR11 and ALR12.

SPECIFICATIONS

Aluminum: Die cast bullet and canopy; adjustable die cast 360° swivel; extruded aluminum extension pole

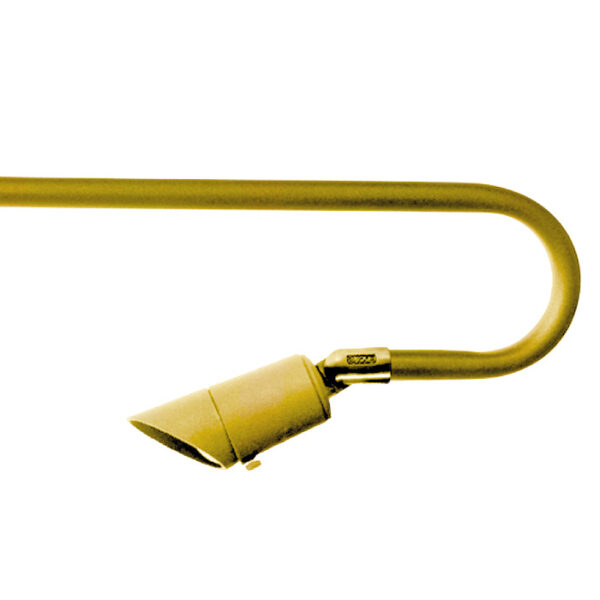

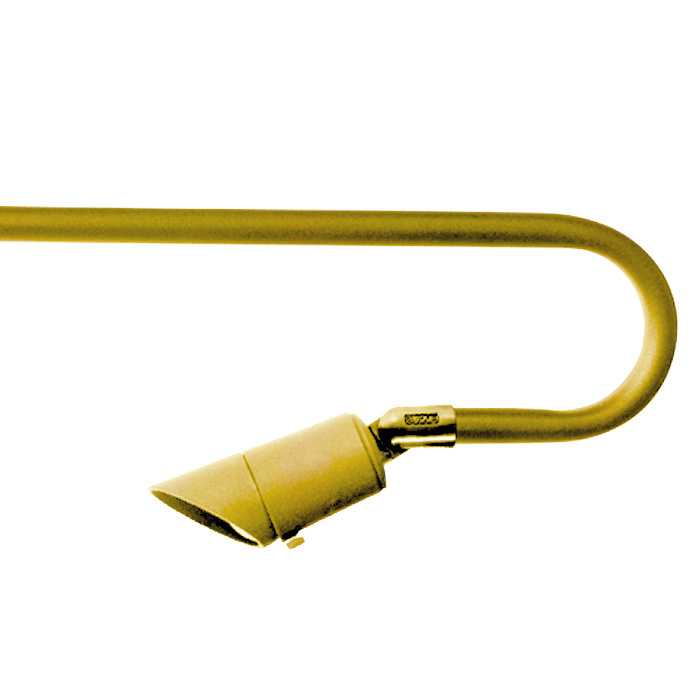

Brass: Die cast bullet and canopy; adjustable die cast 360° swivel; extruded brass extension pole

Max Wattage: 35w

Lens: Flat or convex

Lamp Options: 12v: We recommend 2w ARROW MR11 LED,
20w MR11 ULTRA, 20w ALR12

Lamp Life: ARROW MR11LED 50,000 hours average rating
MR11 ULTRA 10,000 hours average rating
ALR12 2,000 hours average rating

Socket 12v : High temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires (MR16) Double contact Ba15d (ALR12)

Wiring: Black 18/2 SPT-1W 8” from base of fixture

Power Supply 12v : Not included. Requires remote 12v transformer or HW-12-75 integrated 12v hardwire transformer. Integrated LED driver HW-12-8700-LED (120v-230v, 8w 700mA) also available.

Finish: Optional finishes available; see specification sheet for details & colors. Custom colors available.

Note: LED must be powered by magnetic transformer or LED driver

Black Texture (-BLT)

White Texture (-WTX)

Bronze Texture (-BRT)

Rust (-RST)

Antique Verde (-ATV)

Rubbed Verde (-RBV)

Hunter Texture (-HTX)

Weathered Brown (-WBR)

Stucco (-STU)

Weathered Iron (-WIR)

Camel Tone (-CAM)

Chrome Powder (-CPR)

Acid Rust (-BAR/CAR)
Brass & Copper Only

Acid Verde (-BAV/CAV)
Brass & Copper Only

Black Acid Treatment (-BAT)
Brass & Copper Only
