AL08LGS2

CONSTRUCTION:  3″ Diameter X 24″ Large Bollard

LENS:
Frosted, high impact acrylic accent (S2)
Color Glass Lenses Available (see brochure for more information)

LED:  3w MR16 Super Saver LED 36° (L24) (12v)

CCT/LUMENS: 3000K / 270LM

LED OPTION: 3w MR16 Super Saver LED 36° (L108) (120v)

CCT/LUMENS OPTION: 3000K / 270LM

LIFETIME RATING: 50,000 hours

SOCKET: High Temperature Ceramic GU5.3 Bi-Pin with 250°C Silicone Lead Wires (12v)

SOCKET OPTION: High Temperature Ceramic GU10 with 250°C Silicone Lead Wires (120v)

WIRING: Black 3ft 18/2 Zip Cord from Base of Fixture. For 25ft 16/2 Fixture Lead Wire, Add (-25F) to Part Number

CONNECTION: FA05 Quick Connect (not supplied) from Fixture to Main Cable

MOUNTING: Deck Mount, Stainless Steel U-Bracket

FINISH:  Aluminum – Black Texture Finish (BLT) (Powder Coat Options Available)
Brass – Unfinished (Acid & Premium Finishes Available)
Copper – Unfinished (Acid & Premium Finishes Available)
(Powder Coat and Acid Finishes Over Brass, and Copper are Considered Custom and Non-Returnable)

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only

Downloads

Catalog No. Description Lamp
AL08LGDMS2L24BLT 12v 3″ dia. X 24″ Large Aluminum Bollard w/ frosted acrylic accent, deck mount, stainless steel U-Bracket (included) Black Texture Finish 3w MR16 Super Saver LED (L24)
AL08LGDMS2LBRS 12v 3″ dia. X 24″ Large Brass Bollard w/ frosted acrylic accent, deck mount, stainless steel U-Bracket (included) 3w MR16 Super Saver LED (L24)
AL08LGDMS2L108BLT 120v 3″ dia. X 24″ Large Aluminum Bollard w/ frosted acrylic accent, deck mount, FA03LG stake mount, (included) Black Texture Finish 3w MR16 Super Saver LED (L24)
AL08LGDMS2L108BRS 120v 3″ dia. X 24″ Large Brass Bollard w/ frosted acrylic accent, deck mount, FA03LG stake mount (included) 3w MR16 Super Saver LED (L24)

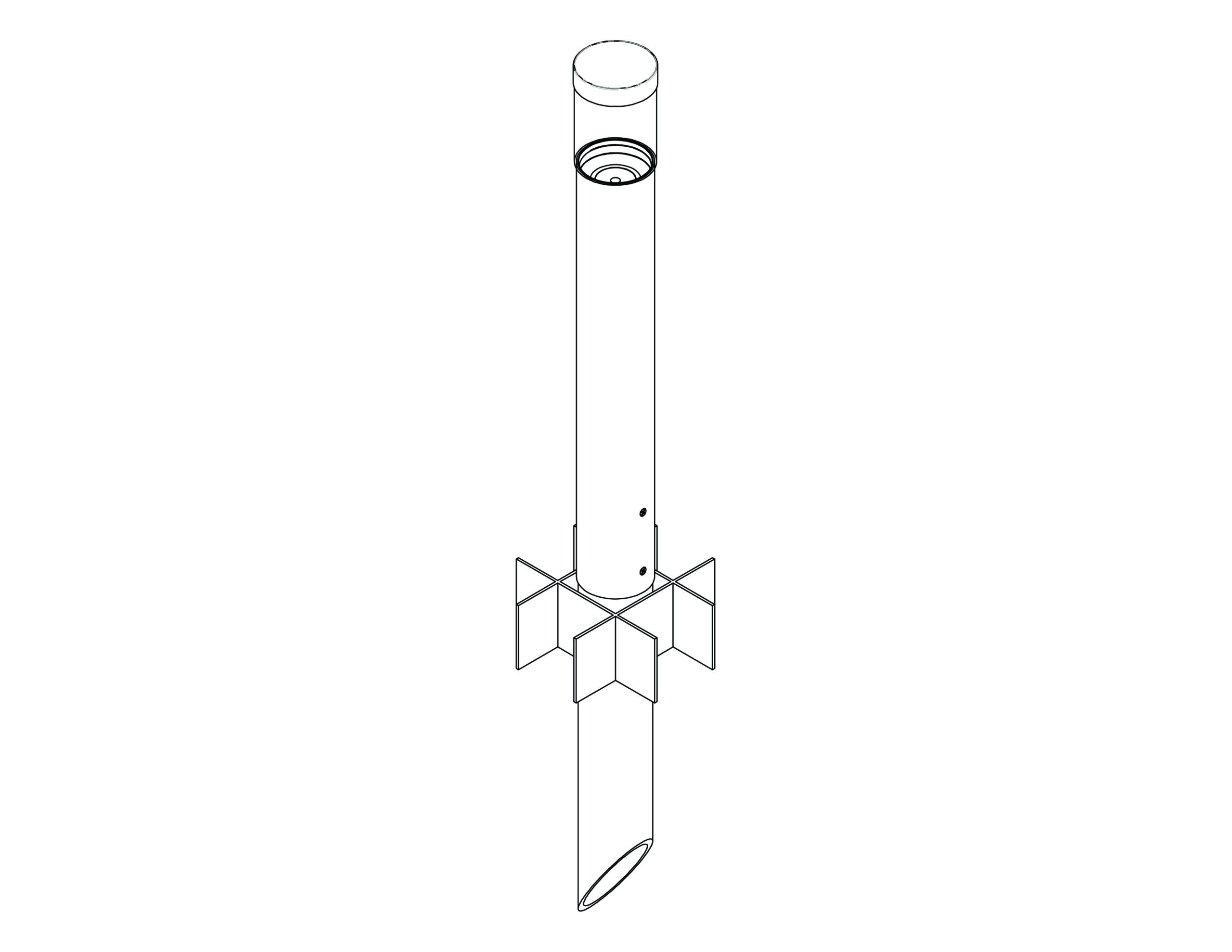

ANGLE CUT

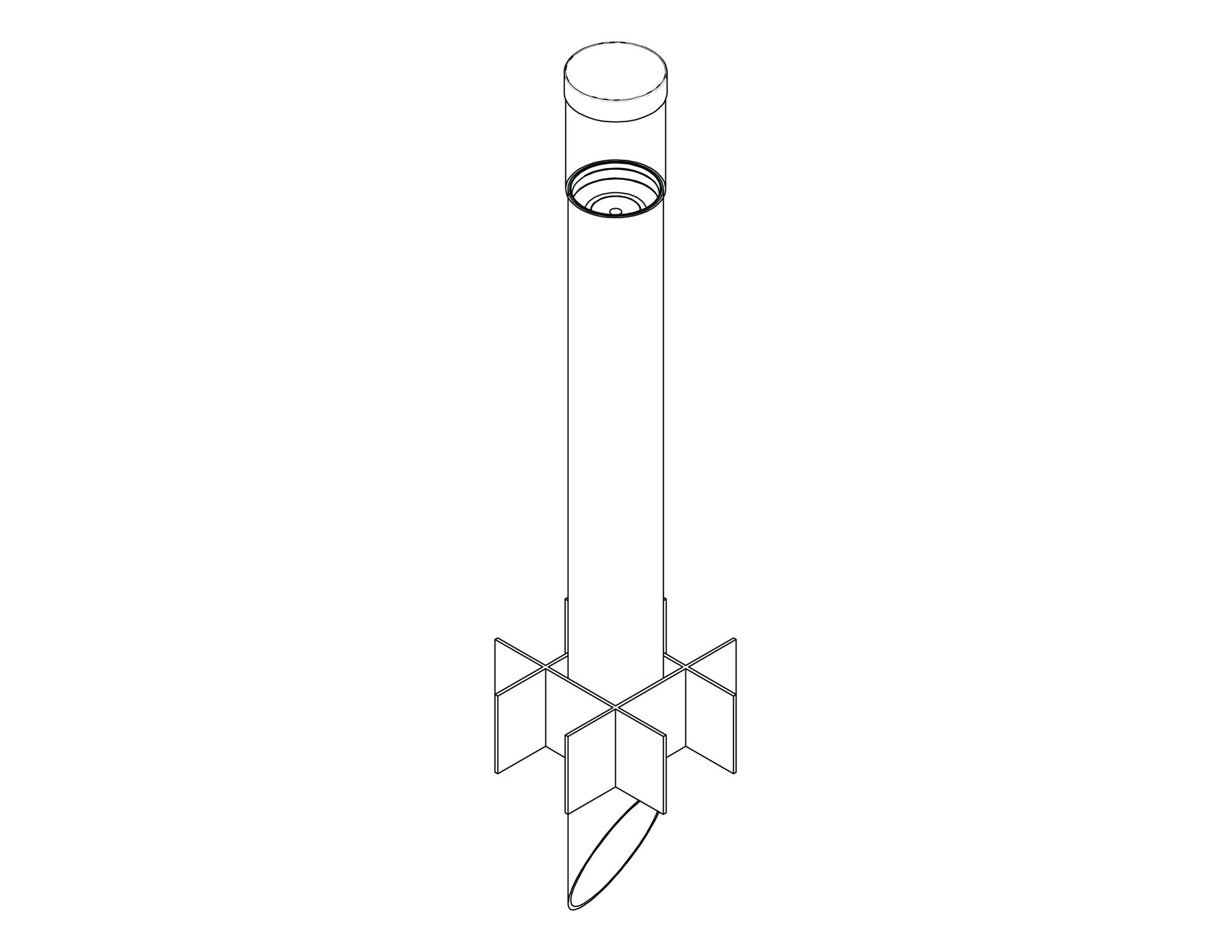

AL08LGS2L24BLT 12v 3″ dia. X 24″ Large Aluminum Bollard w/ frosted acrylic accent, angle cut, 4 mounting fins (included) Black Texture Finish 3w MR16 Super Saver LED (L24)
AL08LGS2L24BRS 12v 3″ dia. X 24″ Large Aluminum Bollard w/ frosted acrylic accent, angle cut, 4 mounting fins (included) 3w MR16 Super Saver LED (L24)
AL08LGS2L24BLT 120v 3″ dia. X 24″ Large Aluminum Bollard w/ frosted acrylic accent, angle cut, 4 mounting fins (included) Black Texture Finish 3w MR16 Super Saver LED (L24)
AL08LGS2L24BRS 120v 3″ dia. X 24″ Large Brass Bollard w/ frosted acrylic accent, angle cut, 4 mounting fins (included) 3w MR16 Super Saver LED (L24)
