| Catalog No. | Description | Lamp |
|---|---|---|
| AL-17-CP24MR120BLT | Aluminum China 8″ Hat on 24″, 3″Ø Post, Black Texture Finish | 7W MR16 LED |
| AL-17-CP36MR120BLT | Aluminum China 8″ Hat on 36″, 3″Ø Post, Black Texture Finish | 7W MR16 LED |
| AL-17-CP24LM120BLT | Aluminum China 8″ Hat on 24″, 3″Ø Post, Black Texture Finish | 15W LED MODULE |
| AL-17-CP36LM120BLT | Aluminum China 8″ Hat on 36″, 3″Ø Post, Black Texture Finish | 15W LED MODULE |
| AL-17-CP24MR120BRS | Brass China 8″ Hat on 24″, 3″Ø Brass Post | 7W MR16 LED |
| AL-17-CP36MR120BRS | Brass China 8″ Hat on 36″, 3″Ø Brass Post | 7W MR16 LED |
| AL-17-CP24LM120BRS | Brass China 8″ Hat on 24″, 3″Ø Brass Post | 15W LED MODULE |
| AL-17-CP36LM120BRS | Brass China 8″ Hat on 36″, 3″Ø Brass Post | 15W LED MODULE |
| For 12v, remove 120 from part # | ||
| Stake Mount add “S” after height |

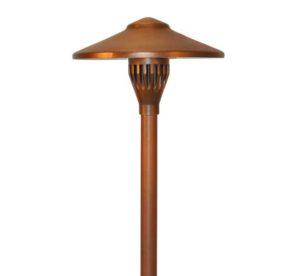

AL-17-CP
CONSTRUCTION: Cast aluminum or cast brass China Hat; matching 3″ extruded aluminum or brass post
LENS: Tempered flat glass
LIGHT SOURCE: 7w ARROW Super Saver MR16 LED or 15w LED module
LIFETIME RATING: 40,000 / 50,000 hours
12v INTERNAL DRIVER: On board for the 15w LED module
120v INTERNAL DRIVER: HW-12-60LED transformer
SOCKET MR16: High temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires
SOCKET LED MODULE: None – LED is hard wired inside fixture
MOUNTING: U-bracket with 4 mounting screws
FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available
Brass – Unfinished brass. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
Brass & Copper Only
