SL02LEDP

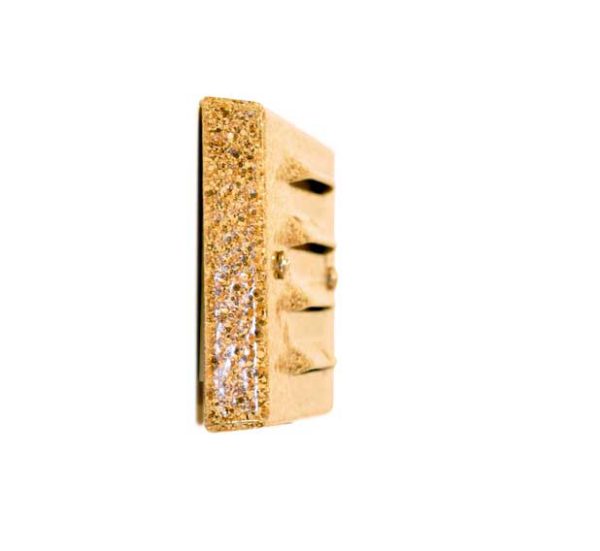

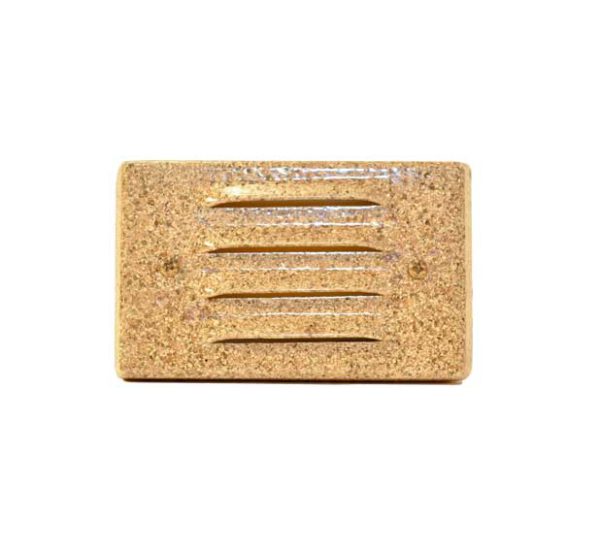

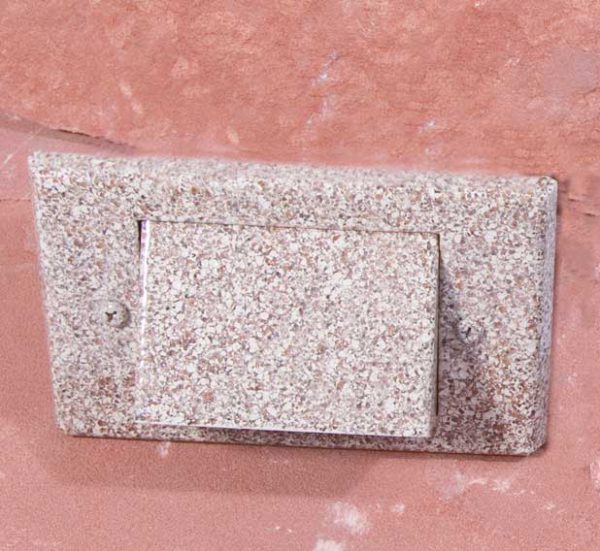

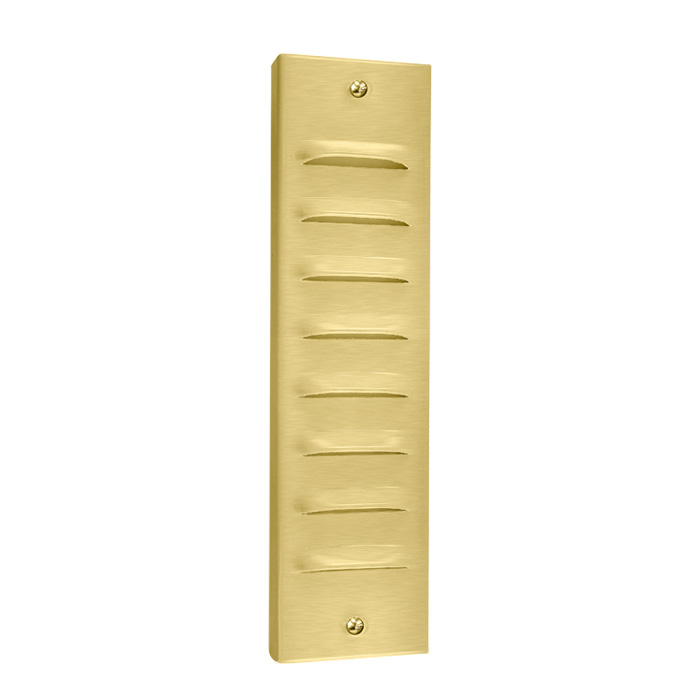

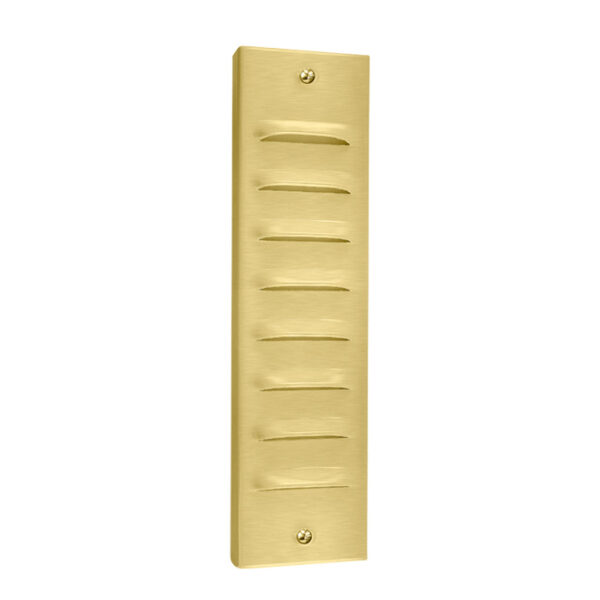

CONSTRUCTION:  Stamped aluminum, brass, copper or stainless steel (-SS available only on SL-02 4 louver model) step/brick light with stamped stainless steel surface mounting bracket – no back box required.

3 LENS OPTIONS:

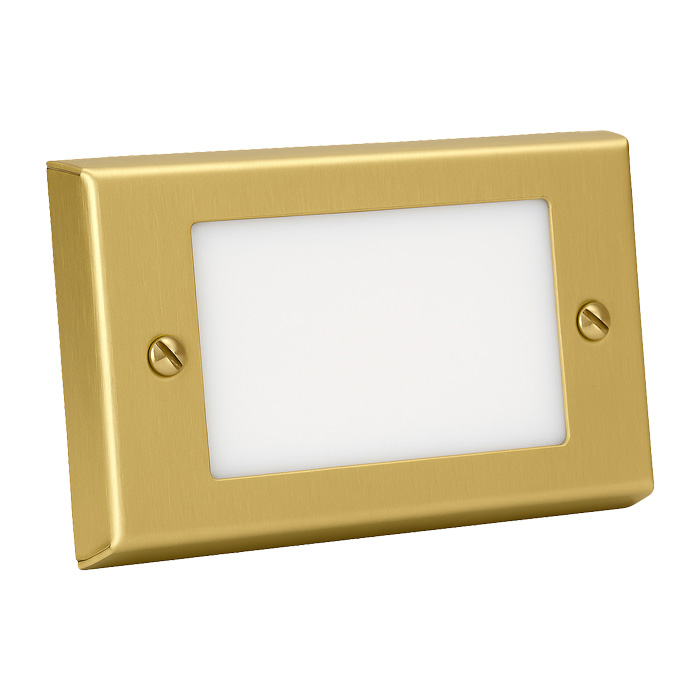

SL-02-LEDP: Standard white acrylic; creates warm 2700K incandescent like color
SL-02-LEDP-SB: Sand Blast clear acrylic; creates soft 3000K halogen like color
SL-02-LEDP-CL: Clear acrylic; bright halogen 3000K color

GASKET:  Black neosponge closed cell; .190″ thickness

LIGHT SOURCE:  12v, 4w integrated LED flat panel with external driver, warm white 3000K
350 lumens (3000K) / 380 lumens (5200K)

LIFETIME RATING:  50,000 hours

SOCKET:  None

DRIVER:  4w output, 12v AC input. Maximum distance from fixture is 18 feet.
For use with magnetic transformers only

VOLTAGE RANGE:  9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.

WIRING:  Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord.
Additional 6′ 18/2 zip cord supplied for wiring external driver to main cable.
For 25 foot 16/2 fixture lead wire add -25F to catalog number.

CONNECTION:  FA-05 Quick Connector (not supplied) from LED driver to main cable
(12/2, 10/2 or 8/2 only)

MOUNTING:  Stainless Steel surface mount bracket; four screws and wall anchors provided;
Face plate attaches to bracket with two provided screws

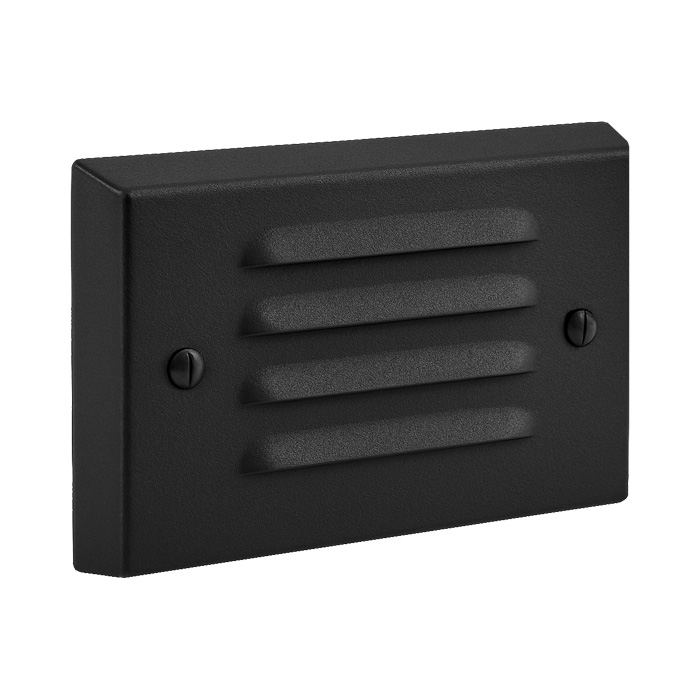

FINISH:  Aluminum – Black texture polyester powder coat; optional finishes available
Brass – Unfinished; optional finishes available

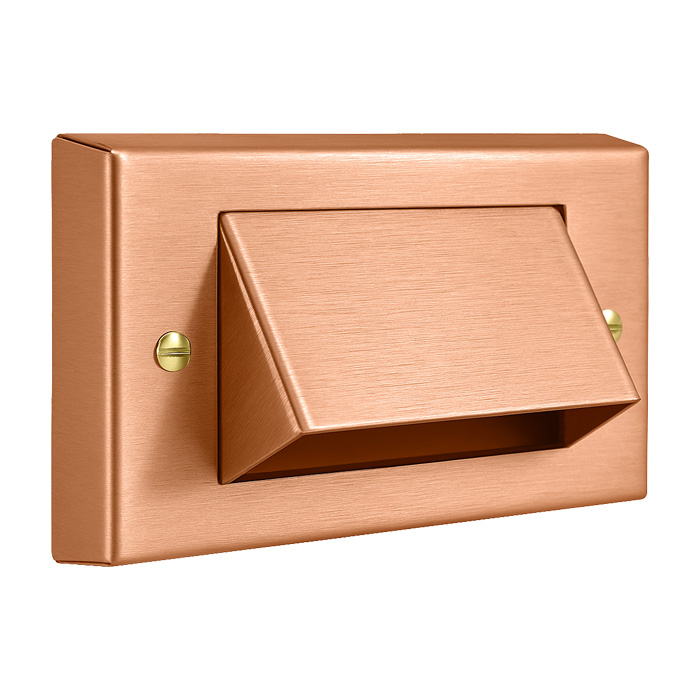

Copper-Unfinished; optional finishes available
Stainless Steel-Brushed

CAUTION: MUST BE POWERED BY LOW VOLTAGE AC MAGNETIC TRANSFORMER ONLY

*NOTE: For custom step lights or custom step light covers, please refer to the Step Light Worksheet located in our Resources Literature section.
https://focusindustries.com/wp-content/uploads/2023/09/Worksheet-1-Step-Lights.pdf

Black Texture (-BLT)

White Texture (-WTX)

Bronze Texture (-BRT)

Rust (-RST)

Rubbed Verde (-RBV)

Hunter Texture (-HTX)

Weathered Brown (-WBR)

Stucco (-STU)

Weathered Iron (-WIR)

Chrome Powder (-CPR)

Acid Rust (-BAR/CAR)
Brass & Copper Only

Acid Verde (-BAV/CAV)
Brass & Copper Only

Black Acid Treatment (-BAT)
Brass & Copper Only
