| Catalog No. | Description | Lamp | |
|---|---|---|---|
| LFL-01-2LEDM10MV | 24″ LED Flood Light, 120v-277v | 3x 10w LED Module | |
| LFL-01-3LEDM10MV | 36″ LED Flood Light, 120v-277v | 4x 10w LED Module | |
| LFL-01-4LEDM10MV | 48″ LED Flood Light, 120v-277v | 6x 10w LED Module | |
| LFL-01-6LEDM10MV |
|
9x 10w LED Module | |
| LFL-01-8LEDM10MV | 96″ LED Flood Light, 120v-277v | 12x 10w LED Module | |

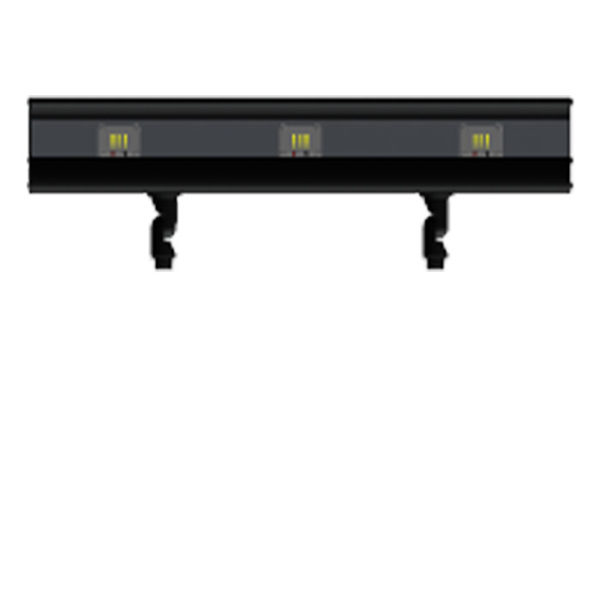

LFL-01-2/-3/-4/-6/-8-LEDM10 Series
CONSTRUCTION: Extruded aluminum floodlight with cast aluminum adjustable swivels.
LENS: High impact clear acrylic
LIGHT SOURCE: 10w 120v-277v LED Module, 863 lumens per module
2700K (warm white) or 4100K (cool white)
LIFETIME RATING: 50,000 hours
SOCKET: None
INTEGRATED DRIVER: 120V-277v INTEGRATED DRIVER: 120v-277v 50/60Hz input.
WIRING 120v: Standard 120v Black, White and Ground 9″ lead wires
MOUNTING: None supplied.
FINISH: Black Texture polyester powder coat. Optional finishes available
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
Brass & Copper Only
