| Catalog No. | Est. Ship Weight | Carton Dimensions |
|---|---|---|
| Aluminum | 2 lbs. | 12" x 6" x 6" |
| Brass | 3 lbs. | 12" x 6" x 6" |

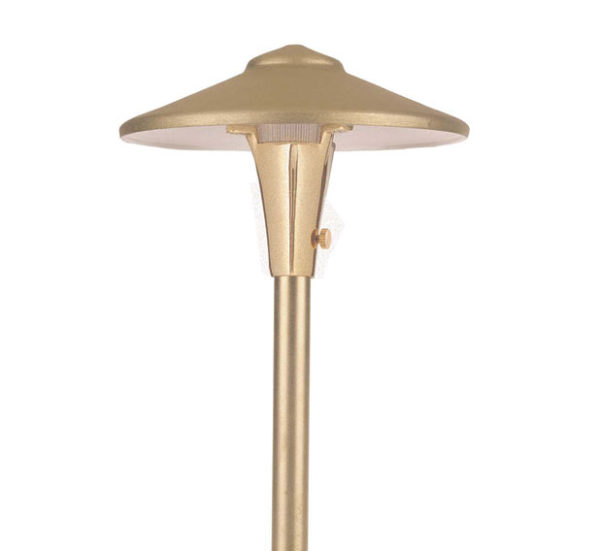

AL04
Product Specifications
Construction
Cast aluminum or cast brass 7.5" China hat
Voltage
12 Volt / 120 Volt
LED / Lamp
12 Volt: 3w Omni Super Saver LED (L12) Single Contact [Standard]
120 Volt: 3w Omni 3 Super Saver LED (L160) Bi-Pin
120 Volt: 3w Omni 3 Super Saver LED (L160) Bi-Pin
CCT
3000K
Lumens
12 Volt: 300LM
120 Volt: 440lm
120 Volt: 440lm
Socket
12 Volt: Single Contact / Bi-Pin
120 Volt: Bi-Pin
120 Volt: Bi-Pin
Lifetime Rating
50,000 Hours
Mounting
FA03 Black ABS Stake
Finish
Aluminum: Black or Bronze Texture Polyester Powder Coat
Brass: Unfinished
Optional powder coat and acid finishes available
Brass: Unfinished
Optional powder coat and acid finishes available
Selected: Black Texture (BLT)
Downloads
Specifications

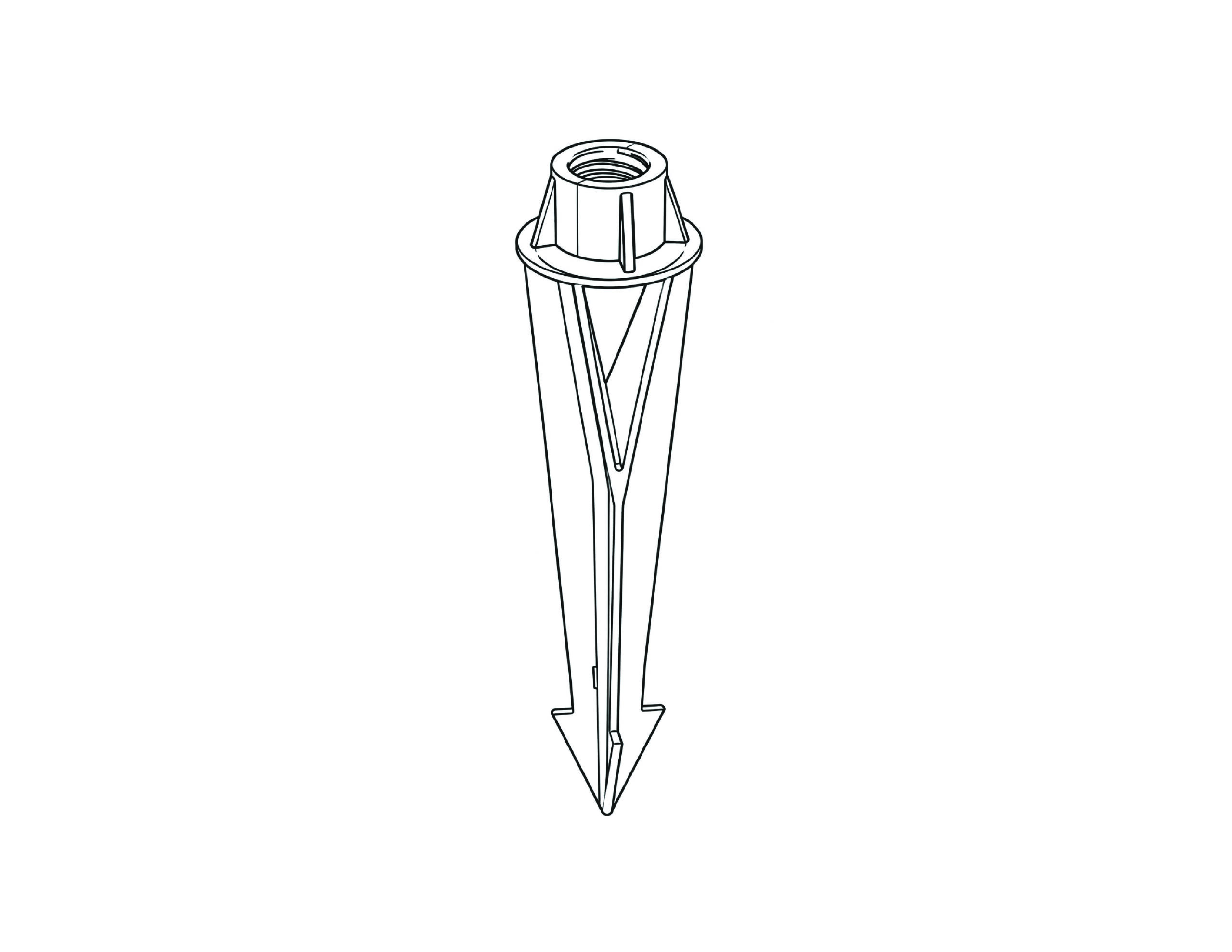

FA03
Black ABS Stake(Standard with Aluminum)

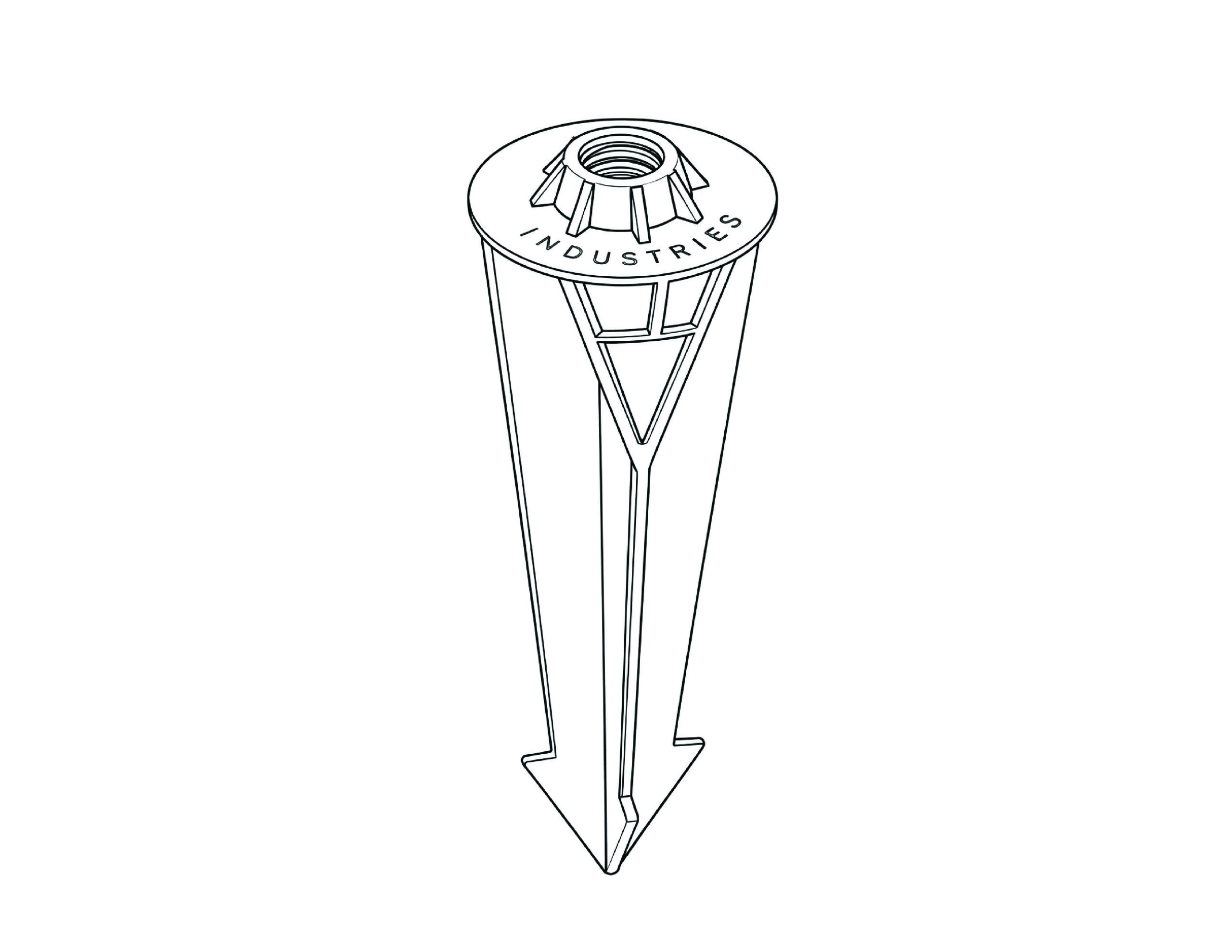

FA03LG
Large Black ABS Stake (Standard with Brass)
Available Finishes
Select any finish below to view a larger preview. Finish availability may vary by fixture material. Premium powder coat and acid treatment finishes may carry additional charges.
STANDARD FINISHES
PREMIUM FINISHES
ACID FINISHES
Acid Finish Disclaimer:
Acid-treated finishes are created through a natural chemical reaction and may vary in color, tone, pattern, and overall appearance from fixture to fixture. Variations are inherent to the finishing process and are not considered defects. Website images and finish samples are intended as a general representation only.
Configure Your AL04
Build your fixture and catalog number.
Fixture
AL04
AL04
Material
Light Source
Watt
Socket
Kelvin
Lumen / Wavelength
Options
Mounting Style
Stem Options
Finish
Premium powder coat and acid treatment finishes may carry additional charges.
Brass acid finishes are available on brass fixtures only.
Custom RAL and Pantone colors can be specified where applicable.
RAL previews are screen approximations. Pantone references are recorded exactly; official Pantone previews will be enabled when Pantone API access is connected.
Selected Finish
Click swatch to enlarge
Catalog Number
