| CATALOG NO. | DESCRIPTION | LAMP |
|---|---|---|
| AL-01-BLT | Cast Aluminum 5.5″ China Hat | 18w S8 #1141 |
| AL-01-BRS | Cast Brass 5.5″ China Hat | 18w S8 #1141 |
| AL-01-SM-BLT | Cast Aluminum 3.75″ China Hat | 18w S8 #1141 |
| AL-01-SM-BRS | Cast Brass 3.75″ China Hat | 18w S8 #1141 |

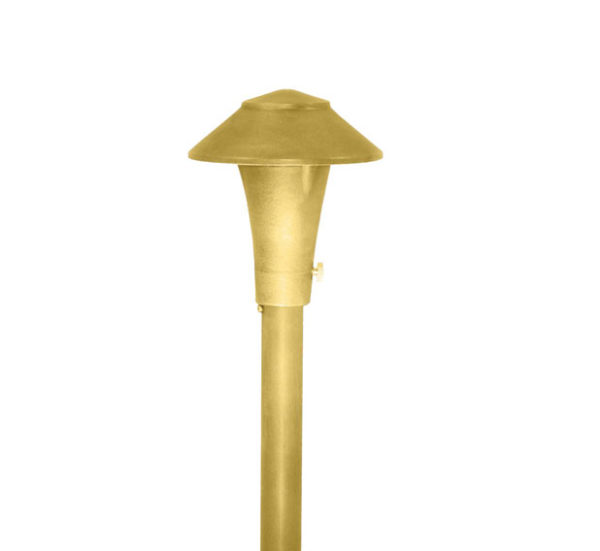

AL-01
CONSTRUCTION: Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion
LAMP OPTIONS: LED & legacy lamp options see specification sheet
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s)
both with 200°C silicone lead wires
MOUNTING: FA-03 black 9″ ABS stake, tapped 1/2″ NPS
FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
Brass & Copper Only
Additional information
| Size | 3.5", 5" |
|---|---|
| Material | Cast Aluminum, Cast Brass |
| Light Source | Halogen (20w 10,000 hour), Incandescent (18w 1,200 hour), LED (3w 50,000 hour rated Omni-3 LED, 160 lumens), Xenon (20w 10,000 hour) |
| Finish | Acid Rust, Acid Verde, Antique Verde, Black Acid Treatment, Black Texture, Bronze Texture, Camel Tone, Chrome Powder, Hunter Texture, Rubbed Verde, Rust, Stucco, Weathered Brown, Weathered Iron, White Texture |
