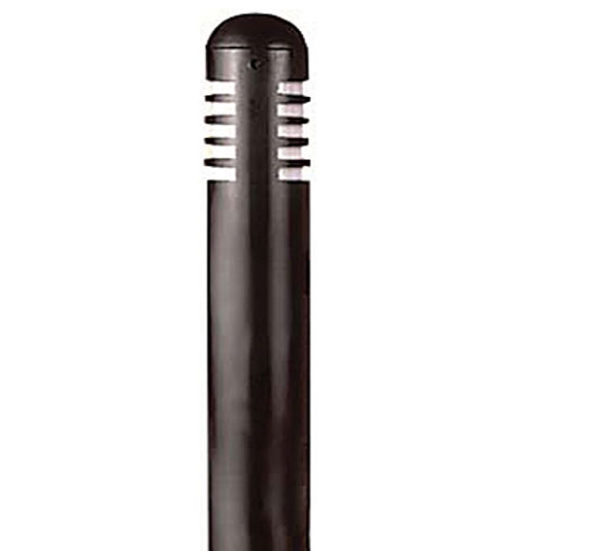

AL-08

CONSTRUCTION:  3.00″ diameter aluminum, brass, copper or black ABS bollard with aluminum or brass top (ABS has black aluminum top; copper has brass top)

LENS:  White high-impact acrylic

LAMP OPTIONS: LED & legacy lamp options see specification sheet

SOCKET:  Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200° C silicone lead wires

MOUNTING:  Standard angle cut model with 4 black ABS stabilizing fins (FA-42-FIN)
Deck Mount model (-DM) with ABS mounting base

FINISH:  Aluminum – Black texture polyester powder coat. Optional finishes available.
Brass – Unfinished brass. Optional finishes available.
Copper – Unfinished copper. Optional finishes available.
ABS – Black or Rubbed Verde.

120 VOLT COMPACT FLUORESCENT BOLLARDS:

LAMP:  CFL single tube, 4100K 10,000 hour (7w max.)

BALLAST:  Internal Type 1 outdoor magnetic clamped core ballast. 120v primary amp draw of 0.165, not including lamp wattage. 5w and 7w CFL operate off same ballast and are interchangeable. 240v and 277v options available. Consult factory for details.

SOCKET:  G23 2-pin

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Antique Verde (-ATV)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Camel Tone (-CAM)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
SKU: AL-08 Category: Tags: ,
Catalog No. Description Lamp
AL-08-BLT Black ABS 3.00″ Bollard 18w S8 #1141
AL-08-ALUMBLT Aluminum ABS 3.00″ Bollard 18w S8 #1141
AL-08-BRS Brass ABS 3.00″ Bollard 18w S8 #1141
AL-08-COP Copper ABS 3.00″ Bollard 18w S8 #1141
AL-08-FL5BLT Black ABS 3.00″ Bollard 5w 4100K CFL
AL-08-ALUMFL5BLT Aluminum 3.00″ Bollard 5w 4100K CFL
AL-08-FL5-BRS Brass 3.00″ Bollard 5w 4100K CFL
AL-08-FL5-COP Copper 3.00″ Bollard 5w 4100K CFL
AL-08-FL7BLT Black ABS 3.00″ Bollard 7w 4100K CFL
AL-08-ALUMFL7BLT Aluminum 3.00″ Bollard 7w 4100K CFL
AL-08-FL7-BRS Brass 3.00″ Bollard 7w 4100K CFL
AL-08-FL7-COP Copper 3.00″ Bollard 7w 4100K CFL
