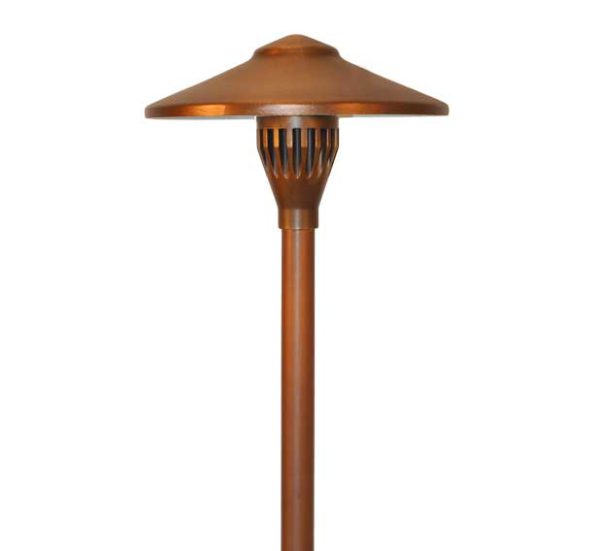

AL-04-LEDP

CONSTRUCTION:  Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion with fixed LED heat sink hub

LENS: High impact clear acrylic

LIGHT SOURCE:  12v, 4w 300 lumen integrated round LED flat panel, warm white 3000K;
optional cool white 5200K 320 lumen available (modify part number to “LEDP52”)

LIFETIME RATING: 50,000 hours

12V INTERNAL DRIVER:  4w 350mA output, 12v AC input.  Voltage range of 9 to 18 volts with optimum operating range of 10 to 15 volts for consistent performance and brightness. For use with magnetic transformers only.

SOCKET:  None – LED is hard wired inside fixture

MOUNTING:  Aluminum Models: FA-03 black 9″ ABS stake, tapped 1/2″ NPS
Brass Models: FA-03-LG ABS black 9″ ABS stake, tapped 1/2″ NPS

FINISH:  Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.

NOTE:  120v – 277v options available with remote LED driver.  Must use FA-26 mounting post or FA-JBOX junction box to house remote driver.

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Antique Verde (-ATV)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Camel Tone (-CAM)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
SKU: AL-04-LEDP Category: Tags: ,
CATALOG NO. DESCRIPTION LAMP
AL-04-LEDP-BLT Cast Aluminum 7.5″ China Hat 4w LED Panel
AL-04-LEDP-BRS Cast Brass 7.5″ China Hat 4w LED Panel



Additional information

Size

7.5"

Material

Cast Aluminum, Cast Brass

Light Source

LED (12v, 4w 300 lumen flat panel, 3000K), LED (12v, 4w 320 lumen flat panel, 5200K)

Finish

Acid Rust, Acid Verde, Antique Verde, Black Acid Treatment, Black Texture, Bronze Texture, Camel Tone, Chrome Powder, Hunter Texture, Rubbed Verde, Rust, Stucco, Weathered Brown, Weathered Iron, White Texture
