| Catalog No. | Description | Lamp |
|---|---|---|
| PGL-04-BLT | Aluminum Putting Green Light | 13w, 4100K CFL |
| PGL-04-2H20-BLT | Aluminum Putting Green Light | 20w T4 Halogen |
| PGL-04-2H35-BLT | Aluminum Putting Green Light | 35w T4 Halogen |
| PGL-04-2X20-BLT | Aluminum Putting Green Light | 20w T4 Xenon |

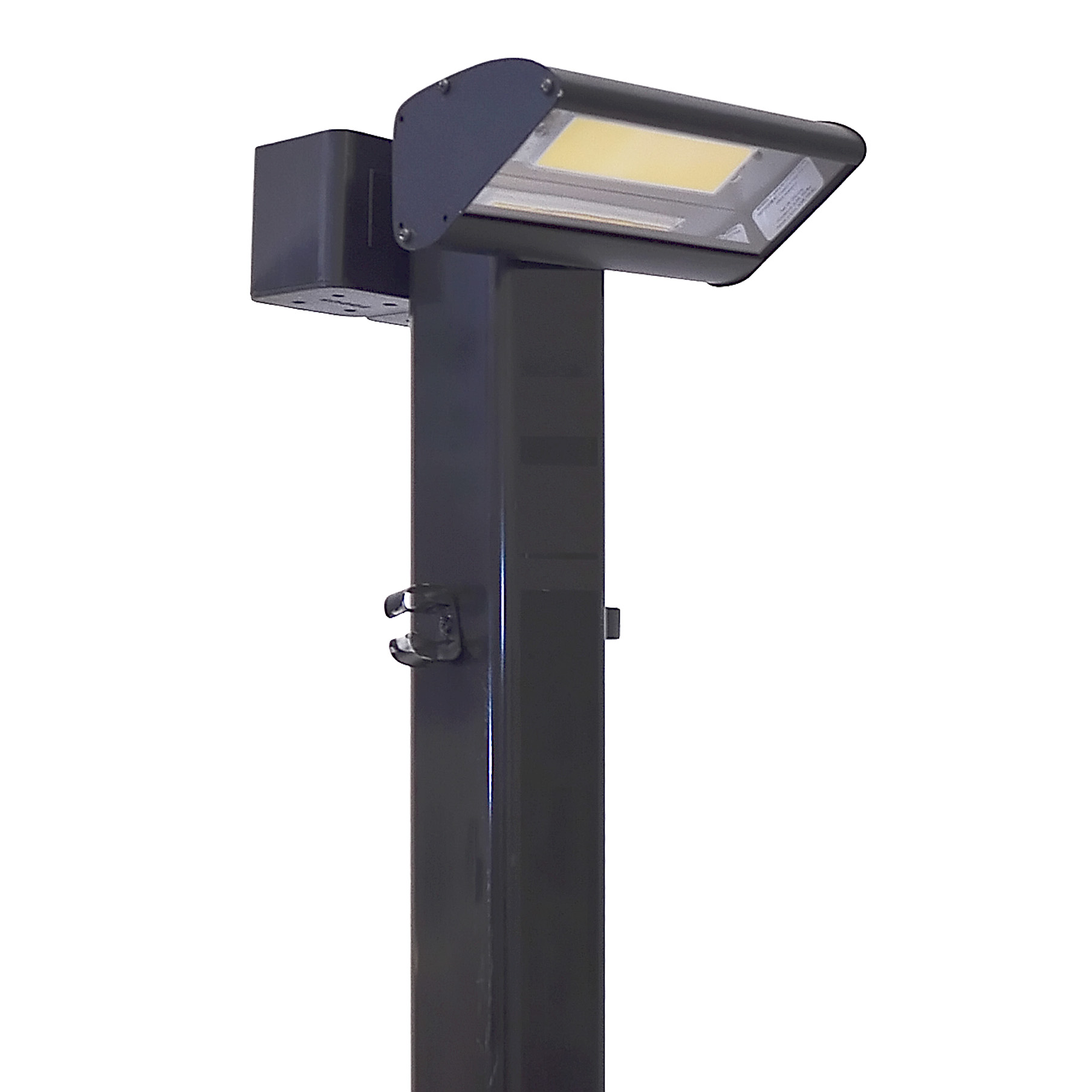

PGL-04
CONSTRUCTION: Extruded aluminum fixture head mounted on black extruded ABS post; supplied with two putter holders and drink/ball holder (putters & golf balls not included)
REFLECTOR: Highly polished specular aluminum
LENS: High impact clear acrylic
GASKET: None
LAMP OPTIONS: LED & legacy lamp options, see specification sheet
SOCKET: GX23 2-pin
-2H20 model: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s) with 200°C silicone lead wires
-2H35 model: Double contact bayonet, brass nickel plated lamp socket screw shell (Ba15d) with 200°C silicone lead wires
-2X20 model: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s) with 200°C silicone lead wires
FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
