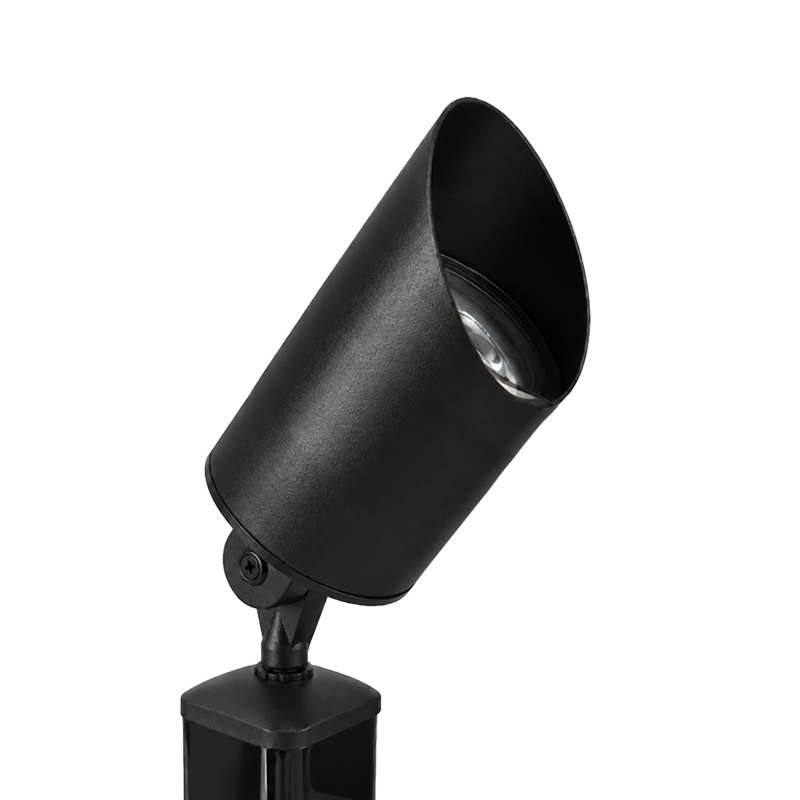

DL50LEDM

CONSTRUCTION: Cast aluminum or cast brass integrated heat sink base; matching cast adjustable swivel with 240° rotation; extruded aluminum or brass housing
LENS: High impact clear tempered convex glass
O-RING: 2x High temperature red silicone
LIGHT SOURCE: Integrated 1800 lumens, 17w LED module (equivalent to 100w halogen)
with 6 high power LEDs; 50,000 hours average rating. 3000k color temperature. 5 year warranty
OPTICS: Interchangeable spot (15°), flood (40°), wide flood (60°) and 160˚ very wide flood (no optics)
120v-277v DRIVER: Integrated on-board, no external driver required. 120v 277vAC input
WIRING: Standard 120 volt Black, White and Ground 9″ lead wires
MOUNTING: None supplied. We recommend FA-26 mounting pedestal
FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available.
Brass – Unfinished. Optional finishes available.

Black Texture (-BLT)

White Texture (-WTX)

Bronze Texture (-BRT)

Rust (-RST)

Rubbed Verde (-RBV)

Hunter Texture (-HTX)

Weathered Brown (-WBR)

Stucco (-STU)

Weathered Iron (-WIR)

Chrome Powder (-CPR)

Acid Rust (-BAR/CAR)
Brass & Copper Only

Acid Verde (-BAV/CAV)
Brass & Copper Only

Black Acid Treatment (-BAT)
Brass & Copper Only
