| Catalog No. | Description | Lamp |
|---|---|---|
| SL-20-LGL-120MH-M130 | Well Light, Composite Lens Holder | 35w PAR20 or 35w PAR30 |
| SL-20-LGL-120MH-M98 | Well Light, Composite Lens Holder | 70w R40 or 70w PAR38 |
| SL-20-LGL-120MH-M90 | Well Light, Composite Lens Holder | 100w PAR38 |
| SL-20-LGG-120MH-M130 | Well Light, Composite Lens Grate | 35w PAR20 or 35w PAR30 |
| SL-20-LGG-120MH-M98 | Well Light, Composite Lens Grate | 70w R40 or 70w PAR38 |
| SL-20-LGG-120MH-M90 | Well Light, Composite Lens Grate | 100w PAR38 |
| SL-20-LGL-120HPS35 | Well Light, Composite Lens Holder | 35w-S76 ED17 |
| SL-20-LGL-120HPS50 | Well Light, Composite Lens Holder | 50w-S68 ED17 |
| SL-20-LGL-120HPS70 | Well Light, Composite Lens Holder | 70w-S62 ED17 |
| SL-20-LGL-120HPS100 | Well Light, Composite Lens Holder | 100w-S54 ED17 |
| SL-20-LGG-120HPS35 | Well Light, Composite Lens Grate | 35w-S76 ED17 |
| SL-20-LGG-120HPS50 | Well Light, Composite Lens Grate | 50w-S68 ED17 |
| SL-20-LGG-120HPS70 | Well Light, Composite Lens Grate | 70w-S62 ED17 |
| SL-20-LGG-120HPS100 | Well Light, Composite Lens Grate | 100w-S54 ED17 |

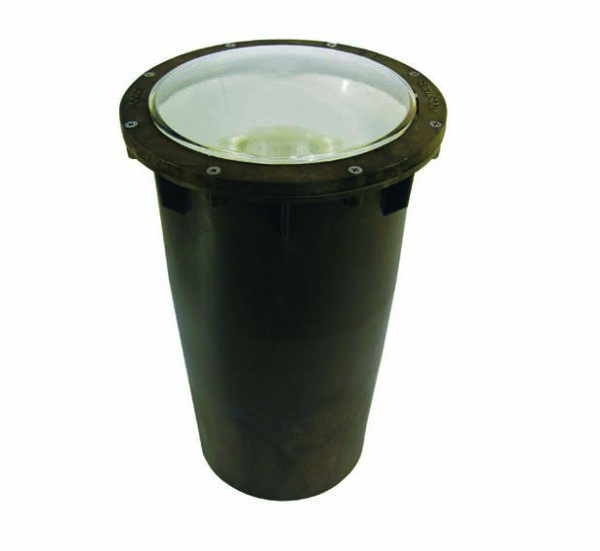

SL-20-LG HID
CONSTRUCTION: BODY: Fiberglass reinforced bronze composite with molded brass inserts for screws
LENS HOLDER & GRATE: Fiberglass reinforced bronze composite, cast aluminum or cast brass
LENS: High impact clear tempered convex glass
LAMP SUPPLIED: None (100w max)
LAMP OPTIONS: ED17 Metal Halide or High Pressure Sodium. See ordering information below
BALLAST: Internal magnetic ballast to correspond with lamp type and wattage.
SOCKET: High temperature ceramic medium base – 600 volts, 660 watts 4 K.V. pulse rated.
Brass nickel-plate screw shell with 250°C lead wires (100w max)
WIRING: Standard 120v Black, White and Ground 9″ lead wires
FINISH: Composite – Bronze.
Aluminum Lens Holder/Grate – Black texture polyester powder coat. Optional finishes available.
Brass Lens Holder/Grate – Unfinished brass. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
Brass & Copper Only
