| Catalog No. | Description | Circuits |
|---|---|---|
| HW-12-75 | 75 watt Electronic Transformer | 1 |

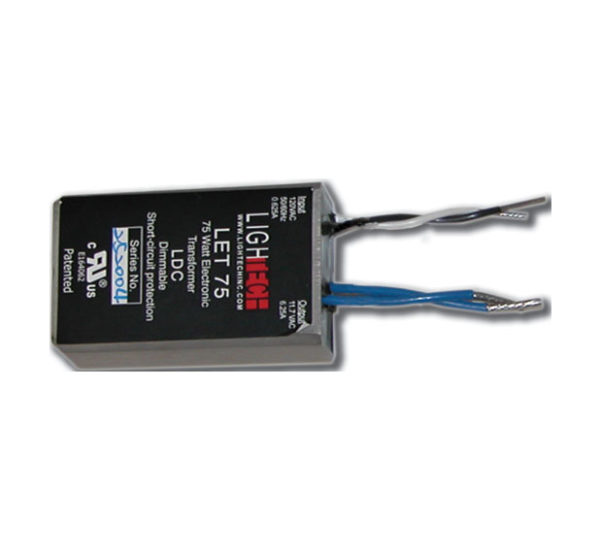

HW-12-75
For powering Incandescent, Halogen or Xenon 12v light bulbs.
IMPORTANT: Do not use to power Focus LED light sources or LED drivers. If using other manufacturers LED light source, check with manufacturer for compatibility.
Type: Electronic
Power: 75w
Power factor: 0.95
Input current: 0.635 A
Input frequency: 50/60 Hz
Input Voltage: 120v
Output Voltage: 11.7v
Output current range: 6350mA
Dimmable: Yes
Potted: Yes
Input wire size: 18 AWG
Output wire size: 14 AWG
Input wires color: Black/White
Output wires color: Blue
