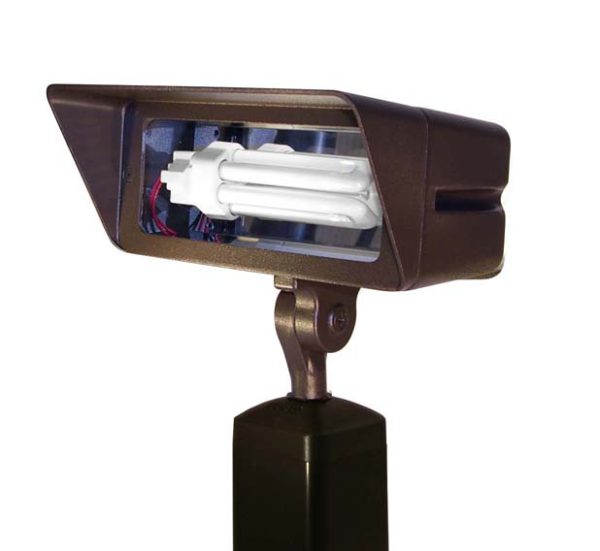

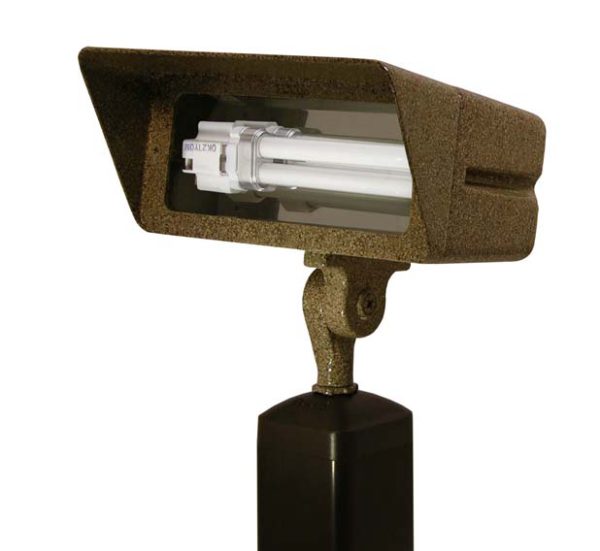

FFL-13-CST & FFL-26-CST

CONSTRUCTION: Die cast aluminum or die cast brass floodlight with heavy duty adjustable die cast aluminum or die cast brass swivel

LENS: High impact clear tempered flat glass

GASKET: High temperature red silicone

REFLECTOR: Highly polished specular aluminum

BALLAST: Type 1 outdoor magnetic clamped core. 120v primary amp draw of 0.165, not including lamp wattage. 240v and 277v options available. Consult factory for details.

LAMP SUPPLIED: 13w CFL T4 single tube, 4100K 10,000 hour (13w max)

LAMP OPTIONS: Warm White 2700K (add -WW to catalog number)

SOCKET: GX23 2-pin

WIRING: Standard 120v Black, White and Ground

MOUNTING: None supplied. See Mounting Accessories below for options

FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available.
Brass – Unfinished brass. Optional finishes available.

NOTE: 220v, 240v and 277v options available. Consult factory for details.

Black Texture (-BLT)

White Texture (-WTX)

Bronze Texture (-BRT)

Rust (-RST)

Rubbed Verde (-RBV)

Hunter Texture (-HTX)

Weathered Brown (-WBR)

Stucco (-STU)

Weathered Iron (-WIR)

Chrome Powder (-CPR)

Acid Rust (-BAR/CAR)
Brass & Copper Only

Acid Verde (-BAV/CAV)
Brass & Copper Only

Black Acid Treatment (-BAT)
Brass & Copper Only
