| Catalog No. | Description | Lamp |
|---|---|---|
| DL-40-2H20-BLT | Cast Aluminum Floodlight | 2 x 20w T4 Halogen |
| DL-40-2H20-BRS | Cast Brass Floodlight | 2 x 20w T4 Halogen |
| DL-40-2H35-BLT | Cast Aluminum Floodlight | 2 x 35w T4 Halogen |
| DL-40-2H35-BRS | Cast Brass Floodlight | 2 x 35w T4 Halogen |
| DL-40-2H50-BLT | Cast Aluminum Floodlight | 2 x 50w T4 Halogen |
| DL-40-2H50-BRS | Cast Brass Floodlight | 2 x 50w T4 Halogen |
DL-40-2H

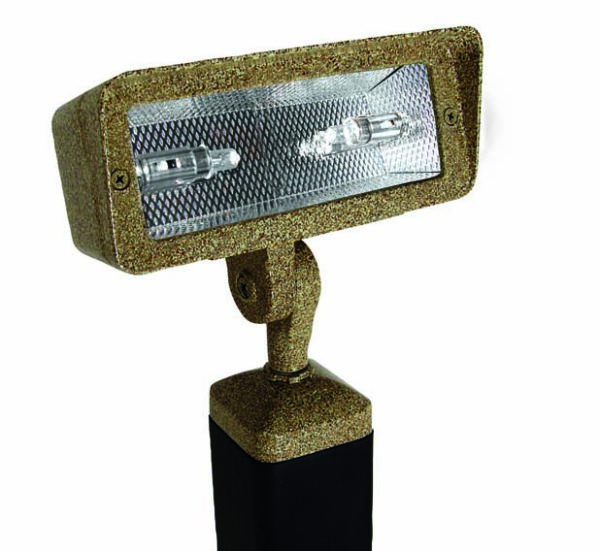

CONSTRUCTION: Die cast aluminum or die cast brass floodlight with heavy duty adjustable die cast aluminum or die cast brass swivel
LENS: High impact clear tempered flat glass
GASKET: High temperature red silicone
REFLECTOR: Highly polished diamond embossed aluminum
LAMP OPTIONS: LED & legacy lamp options see specification sheet
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
MOUNTING: Aluminum: FA-03 black 9″ ABS stake, tapped 1/2″NPS
Brass: FA-03-LG black 9″ oversize ABS stake, tapped 1/2″NPS
FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available.
Brass – Unfinished brass. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
Brass & Copper Only
