| CATALOG NO. | DESCRIPTION | LAMP | |
|---|---|---|---|
| DL-03 | 5″ aluminum Bullet | 36w PAR36 (QWFL) | |
| DL-03-BRS | 5″ brass Bullet | 36w PAR36 (QWFL) | |
| DL-03-4414 | 5″ aluminum Bullet | 18w PAR36 (MFL) | |
| DL-03-4414-BRS | 5″ brass Bullet | 18w PAR36 (MFL) | |
| DL-03-VWFL | 5″ aluminum Bullet | 25w PAR36 (VWFL) | |
| DL-03-VWFL-BRS | 5″ brass Bullet | 25w PAR36 (VWFL) |

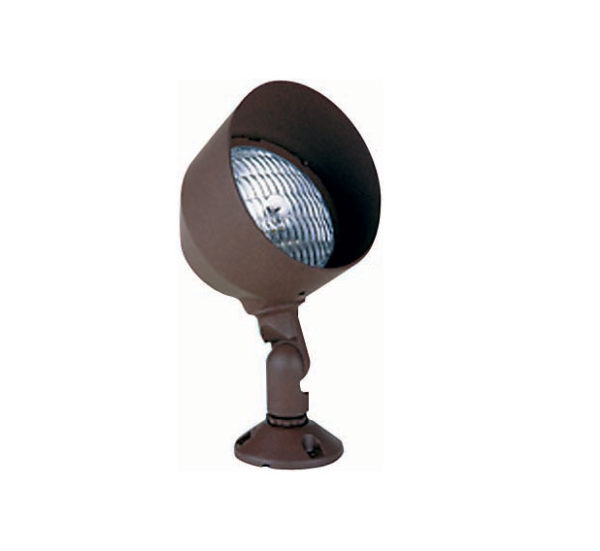

DL-03
CONSTRUCTION: Cast aluminum or cast brass Bullet; matching cast aluminum or brass adjustable swivel

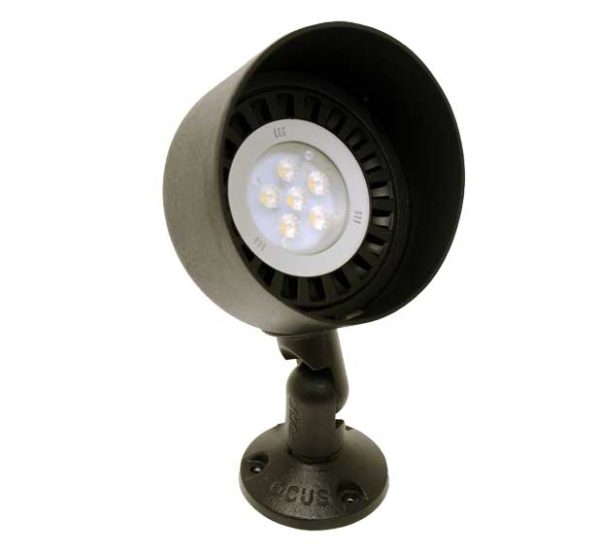

LAMP OPTIONS: LED & legacy lamp options see specification sheet
SOCKET: None, PAR36 lamp supplies connection via 1/4″ quick connect or stud terminal
MOUNTING: FA-03 black 9″ ABS stake threaded 1/2″ NPS
FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.
Black Texture (-BLT)
White Texture (-WTX)

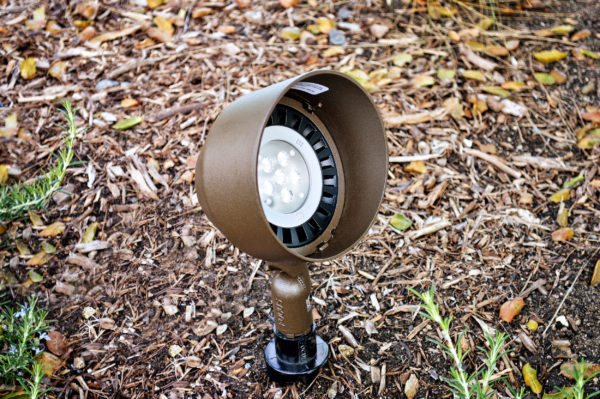

Bronze Texture (-BRT)
Rust (-RST)
Antique Verde (-ATV)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)

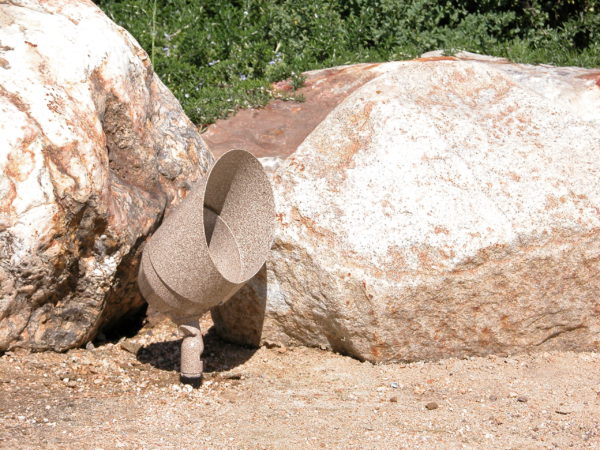

Camel Tone (-CAM)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
Brass & Copper Only
