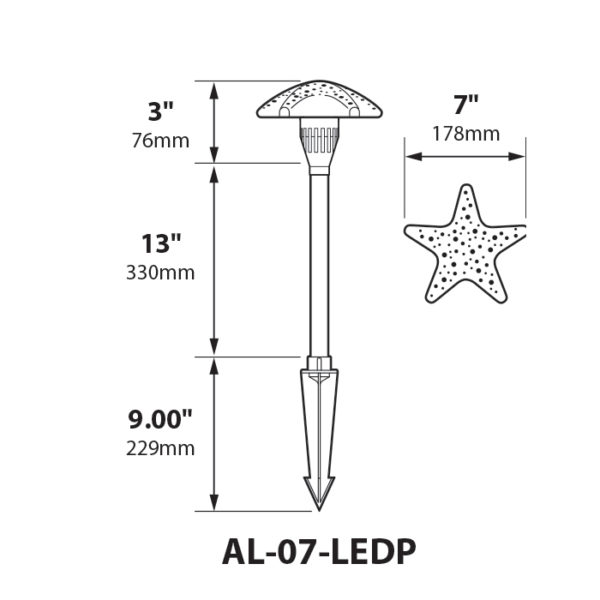

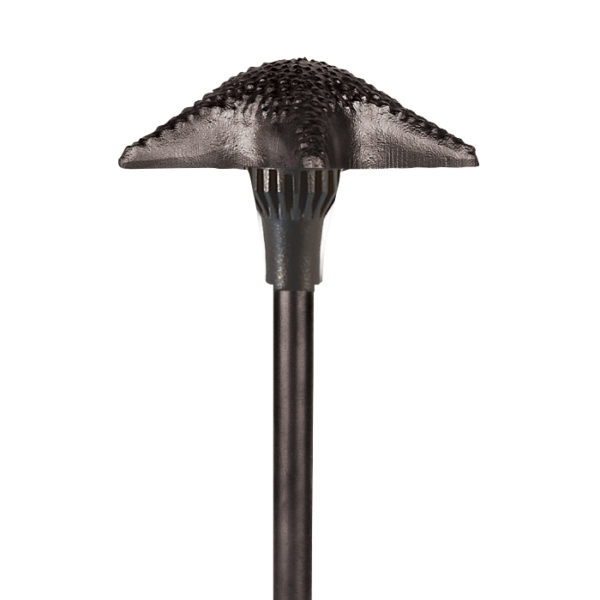

AL-07-DC-LEDP

CONSTRUCTION:  Cast aluminum or brass Starfish Hat; extruded aluminum or brass stanchion

LIGHT SOURCE:  4w 300 lumen integrated round LED flat panel, warm white 3000K; optional cool white 5200K 320 lumen available (modify part number to “LEDP52”

LIFETIME RATING:  50,000 hours

12V INTERNAL DRIVER:  5w 12vDC 350mA output, 12vAC input

SOCKET:  None – LED is hard wired inside fixture

MOUNTING:  Aluminum models- FA-03 black 9″ ABS stake, tapped 1/2″ NPS
Brass Models- FA03LG black 9″ ABS large stake, tapped 1/2″ NPS

FINISH:  Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available

NOTE: 120-277v options available with remote LED driver. Must use FA26 mounting post
or FAJBox junction box to house remote driver

Black Texture (-BLT)

White Texture (-WTX)

Bronze Texture (-BRT)

Rust (-RST)

Rubbed Verde (-RBV)

Hunter Texture (-HTX)

Weathered Brown (-WBR)

Stucco (-STU)

Weathered Iron (-WIR)

Chrome Powder (-CPR)

Acid Rust (-BAR/CAR)
Brass & Copper Only

Acid Verde (-BAV/CAV)
Brass & Copper Only

Black Acid Treatment (-BAT)
Brass & Copper Only
