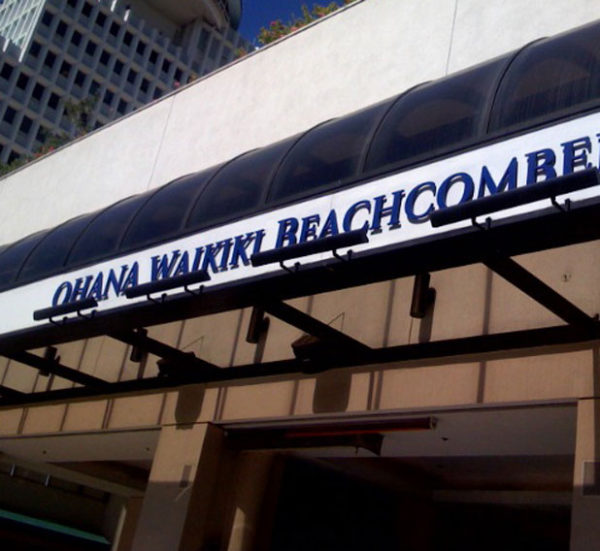

Commercial grade flood lighting featuring T5HO and T8 fluorescent light sources. Mounted to heavy duty swivels for secure aiming. Illuminate large signs and architectural features with long life fluorescent lighting.

120v (T8 or T5HO) & Universal 120v-277v (T5HO) Multi Volt ballasts available

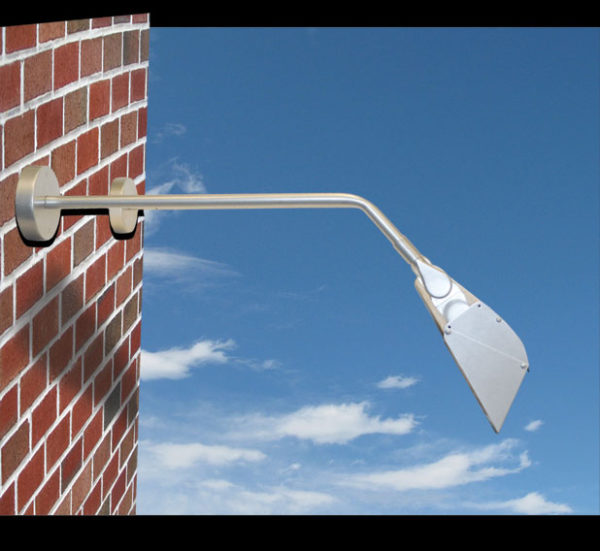

Aluminum: Extruded aluminum floodlight with
two adjustable heavy duty cast aluminum swivels

Reflector: Highly polished specular aluminum

Lens: High impact clear acrylic

Lamp Supplied 120v: T5HO in 24w, 39w or 54w;
T8 in 17w, 25w or 32w; (3000K)

Lamp Life: T5HO; 20,000+ hours average rating
T8; 24,000+ hours average rating

Lamp Options: 3500K and 4100K

Socket: Bi-pin G5 for T5/T5HO; Bi-pin G13 for T8

120v Ballast: Integrated Type 1, outdoor rated high frequency electornic ballast
Note: 120v not available on 54w T5HO, must use 120v-277v

120v-277v Ballast: Integrated Type 1, outdoor rated high frequency programmed start electronic ballast
Note: 54w T5HO only available with Multi Volt ballast

Wiring 120v: Standard 120v black, white & green

Power Supply 120v: No transformer required

Finish: Optional finishes available; see specification sheet for details & colors. Custom colors available.

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Antique Verde (-ATV)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Camel Tone (-CAM)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
SKU: SLS-T5HO & SLS-T8 Category: Tags: , ,
Catalog No. Description Lamp

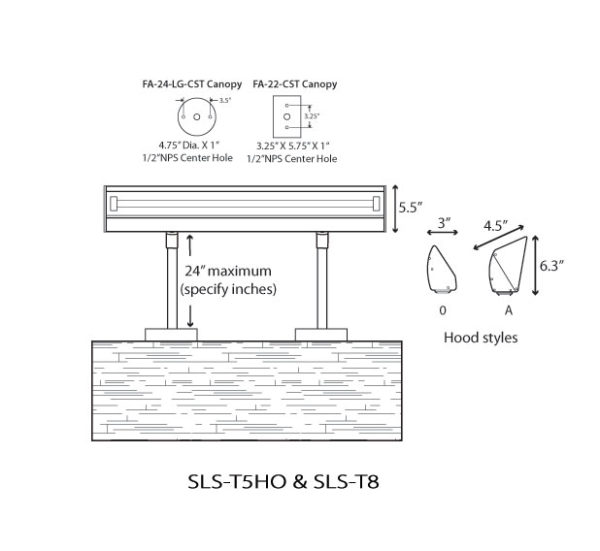

SLS-T5HO / SLS-T8 Aluminum Sign Lighter See Specification Sheet
