SL-02

CONSTRUCTION:
FACE PLATE: Heavy duty stamped aluminum, brass, copper or Stainless Steel
BACK BOX: Heavy duty stamped galvanized steel powder coated high reflective white

LENS (-AL & -1L MODELS ONLY): High impact white acrylic

GASKET: Black neosponge closed cell; .190″ thickness

LAMP SUPPLIED: 18w S8 #1141; 1200 hours average rating (25w max.)

LAMP OPTIONS: We recommend 10,000 hours average rating Xenon (-X) or Halogen (-H) or 3w 50,000 hours average rating OMNI-3 LED (-LED3)

SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s) with 200°C silicone lead wires

WIRING: Black 3 foot 18/2 zip cord (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.

CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)

FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available.
Brass – Unfinished. Optional finishes available.
Copper – Unfinished. Optional finishes available.
Stainless Steel – Brushed.

Black Texture (-BLT)
White Texture (-WTX)
Bronze Texture (-BRT)
Rust (-RST)
Antique Verde (-ATV)
Rubbed Verde (-RBV)
Hunter Texture (-HTX)
Weathered Brown (-WBR)
Stucco (-STU)
Weathered Iron (-WIR)
Camel Tone (-CAM)
Chrome Powder (-CPR)
Acid Rust (-BAR/CAR)
Brass & Copper Only
Acid Verde (-BAV/CAV)
Brass & Copper Only
Black Acid Treatment (-BAT)
Brass & Copper Only
SKU: SL-02 Category: Tags: , ,
Catalog No. Description Lamp

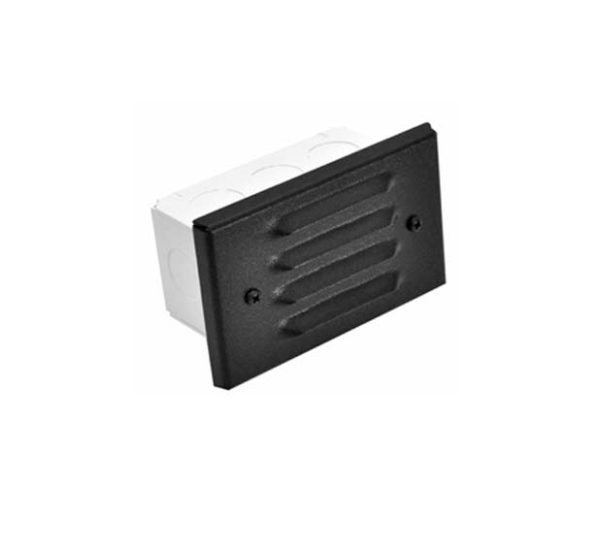

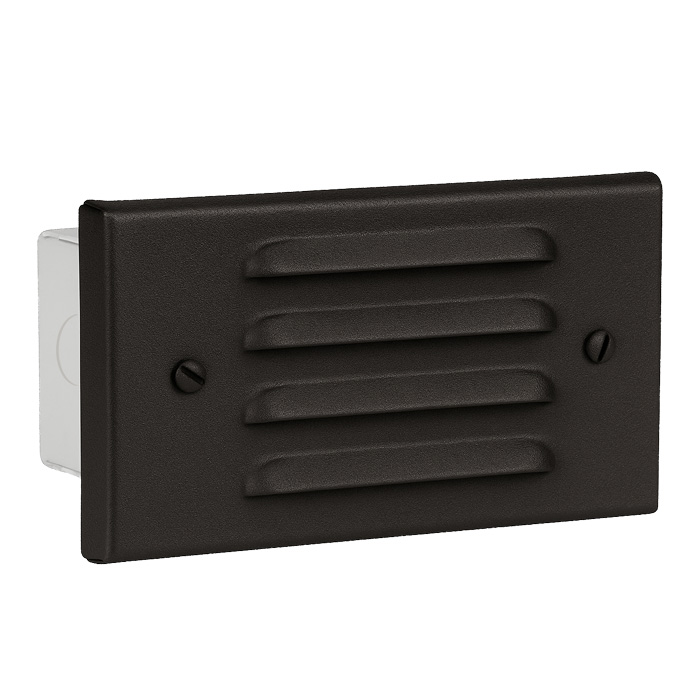

SL-02-BLT Aluminum 4 Louver Step Light 18w S8 #1141
SL-02-BRS Brass 4 Louver Step Light 18w S8 #1141
SL-02-COP Copper 4 Louver Step Light 18w S8 #1141
SL-02-SS Stainless Steel 4 Louver Step Light 18w S8 #1141
SL-02-AL-BLT Aluminum Lensed Step Light 18w S8 #1141
SL-02-AL-BRS Brass Lensed Step Light 18w S8 #1141
SL-02-AL-COP Copper Lensed Step Light 18w S8 #1141
SL-02-AL-SS Stainless Steel Lensed Step Light 18w S8 #1141
SL-02-3L-BLT Aluminum 3 Louver Step Light 18w S8 #1141

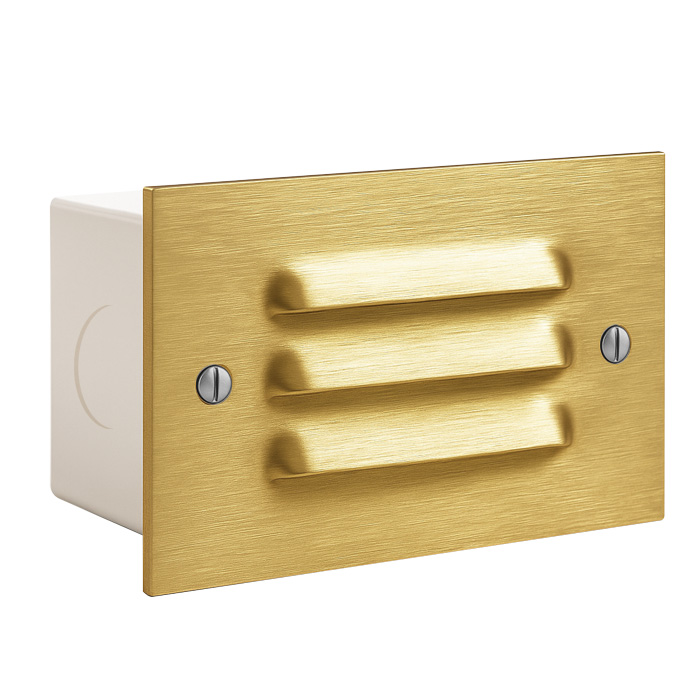

SL-02-3L-BRS Brass 3 Louver Step Light 18w S8 #1141
SL-02-3L-COP Copper 3 Louver Step Light 18w S8 #1141
SL-02-3L-SS Stainless Steel 3 Louver Step Light 18w S8 #1141
SL-02-1L-BLT Aluminum 1 Louver Lensed Step Light 18w S8 #1141
SL-02-1L-BRS Brass 1 Louver Lensed Step Light 18w S8 #1141

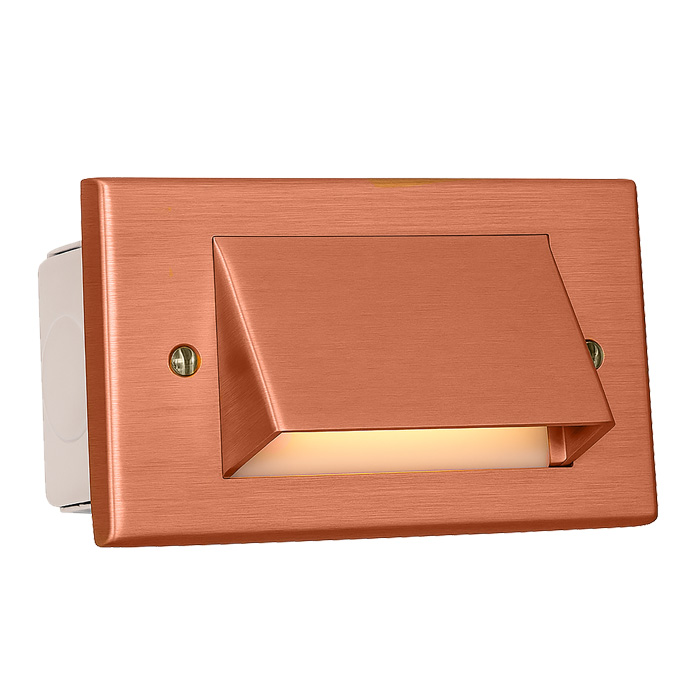

SL-02-1L-COP Copper 1 Louver Lensed Step Light 18w S8 #1141
SL-02-1L-SS Stainless 1 Louver Lensed Step Light 18w S8 #1141
